500 Tons Recycling Heavy Duty Hydraulic Metal Shear Machine With Door Cover
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Nmae | Recycling Machine | Hydraulic System Pressure | Hydraulic |
|---|---|---|---|
| Function | Waste Metal Shear | Application | Cutting Scrap Steel |
| Material | Scrap Steel Or Other Metal | Control System | PLC+Remote |
| Condition | New | Color | Green |
| Highlight | Heavy Duty Hydraulic Metal Shear Machine,500t Recycling Hydraulic Metal Shear Machine,Door Cover Green Hydraulic Metal Shear |
||
Product Description

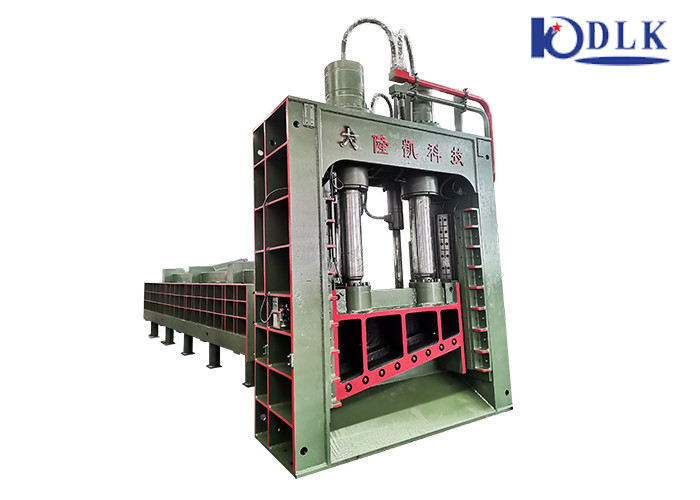

500t Hydraulic Heavy Shear Recycling Machinery With Door Cover
Product Description

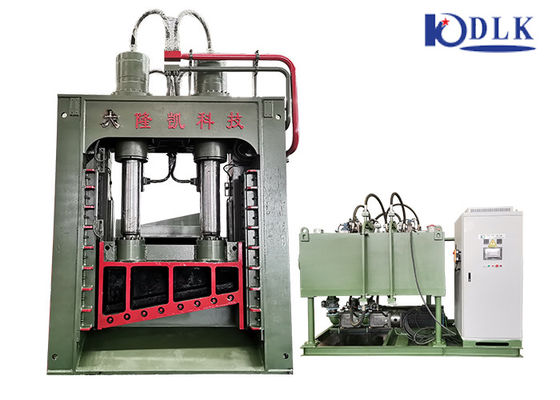

The hydraulic gantry shear is composed of a frame, a hydraulic cylinder, a hydraulic power system, and an electrical system. Based on the working principle, it passes through the automatic feeding box, that is, after the material is grabbed to the feeding box, the waste is automatically sent to the knife edge shear by the conveyor belt When cutting, the feeding speed can be adjusted by the speed regulating motor.
Side squeeze cylinders are installed on both sides of the material box. Large waste materials, such as scrapped cars, cannot be cut through the gantry shear. The side squeeze cylinders can be used to squeeze and shrink the waste, and then be sent to the cutting blade through the conveyor to be cut off.
Technical parameters:
|
Model |
Max.Cutting Force(ton) |
Press Box Size(mm) |
Blade Length(mm) |
Cutting Frequency (times/min) |
Power (KW) |
|
Q91Y-400 |
400 |
6000*1300*500 |
1400 |
2-4 |
90 |
| Q91Y-500 | 500 | 6000*1500*700 | 1600 | 2-4 | 110 |
| Q91Y-630 | 630 | 8000*1700*1200 | 1800 | 2-4 | 150 |
| Q91Y-1000 | 1000 | 8000*2000*1200 | 2500/2100 | 2-4 | 270 |
Factory
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our DLK brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Certification
Shipping
FAQ
1,Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2,Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3,Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4,Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.29, Panlongshan Road, Jiangyin City, Jiangsu Province, China.
5,Q: Can we order one set machine?
A:Yes, you can.
