WS-500 Hydraulic Driven Gantry Shear with 6-8t/H Production Rate and 90kw Power for Scrap Metal Processing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Cutting Force | 5000kn | Blade Length | 1400mm |
|---|---|---|---|
| Production Rate | 6-8t/H | Power | 90kw |
| Nominal Force | 400Ton | Driven Type | Hydraulic |
| Max Shear Length | 1600mm | Voltage | 21.5Mpa |
| Automatic Grade | Automatic | Shear Height | 300/420mm |
| Model NO. | WS-500 | Production Capacity | 5 Sets/Month |
| Control System | PLC | Structure Type | Horizontal |
| Operation Type | Push-button | ||
| Highlight | Hydraulic Driven Gantry Shear,6-8t/H Production Rate Gantry Shear,90kw Power Hydraulic Scrap Metal Shear |
||
Product Description

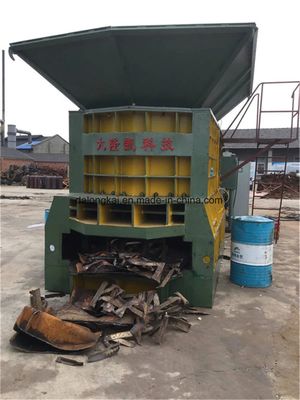

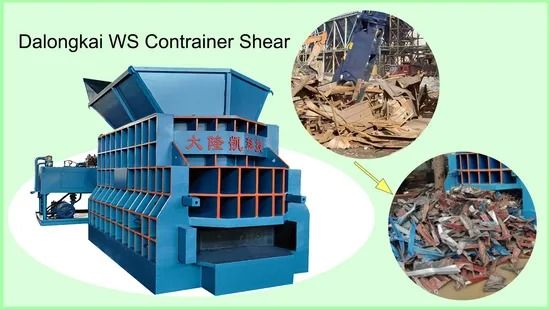

WS-500 Hydraulic Scrap Metal Automatic Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap metal processing, featuring easy operation and flexible transportation with a roll on/roll off system. Various models are available to suit different operational requirements.
Key Features
- Horizontal structure: Supports both manual feeding and automatic feeding with conveyor
- PLC control system: Push-button operation ensures safe and reliable performance
- High output capacity: Designed for efficient scrap processing
Product Specifications
| Product Name | WS Horizontal Metal Shear |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 400Ton |
| Driven Type | Hydraulic |
| Max. Length To Shear | 1600mm |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 5 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Technical Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
