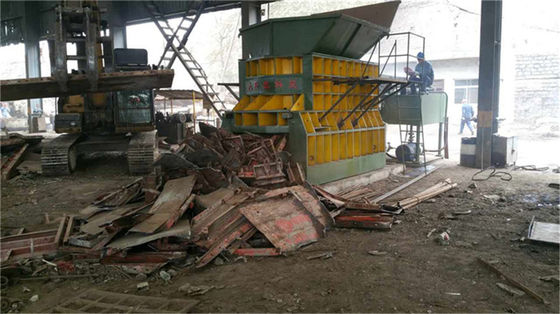

WS-500 Model Gantry Shear with 5000kn Max Cutting Force and 1400mm Blade Length for Scrap Metal Processing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | WS-500 | Max Cutting Force | 5000kn |
|---|---|---|---|
| Blade Length | 1400mm | Production Rate | 6-8t/H |
| Power | 90kw | Nominal Force | 400Ton |
| Driven Type | Hydraulic | Max Length | 1600mm |
| Voltage | 21.5Mpa | Automatic Grade | Automatic |
| Shear Height | 300/420mm | Production Capacity | 5 Sets/Month |
| Color | Customized | Control Type | PLC |
| Operation Type | Push-button | ||
| Highlight | WS-500 Model Gantry Shear,5000kn Max Cutting Force Scrap Metal Shear,1400mm Blade Length Horizontal Metal Shear |
||
Product Description
WS-500 Horizontal Scrap Non-Ferrous Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via a roll on/roll off system. Various models are available to meet different production requirements.
Applications
Ideal for processing scrap metal, the HPM series of horizontal balers work with manual belting for efficient material handling.
Key Features
- Horizontal structure allows for manual or automatic feeding with conveyor
- PLC control and push-button operation ensure safe and reliable performance
- High output capacity for efficient production
Specifications
Product Name:
WS Horizontal Metal Shear
Condition:
New
Application:
Scrap metal
Nominal Force:
400Ton
Driven Type:
Hydraulic
Max. Length To Shear:
1600mm
Voltage:
21.5Mpa, Customized
Color:
Customized
Automatic Grade:
Automatic
Technical Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
Commercial Terms
Minimum Order Quantity:
1 Set
Price:
Negotiable
Payment Terms:
30% T/T In Advance
Supply Ability:
5 sets /month
Delivery Time:
As your requirement
Packaging Details:
Seaworthy packing
After-sales Service:
Engineers are available to overseas service
