WS-315 Model Gantry Shear with 3150kn Max Cutting Force and 800mm Blade Length for Scrap Metal Processing
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | WS-315 | Max Cutting Force | 3150kn |
|---|---|---|---|
| Blade Length | 800mm | Production Rate | 3-5t/H |
| Power | 60kw | Nominal Force | 400Ton |
| Driven Type | Hydraulic | Max Shear Length | 1600mm |
| Voltage | 21.5Mpa | Automatic Grade | Automatic |
| Shear Height | 300/420mm | Production Capacity | 5 Sets/Month |
| Max Cutting Force (WS-400) | 4000KN | Blade Length (WS-400) | 1000mm |
| Power (WS-400) | 74KW | ||
| Highlight | WS-315 Model Gantry Shear,3150kn Max Cutting Force Scrap Metal Shear,800mm Blade Length Horizontal Metal Shear |
||
Product Description

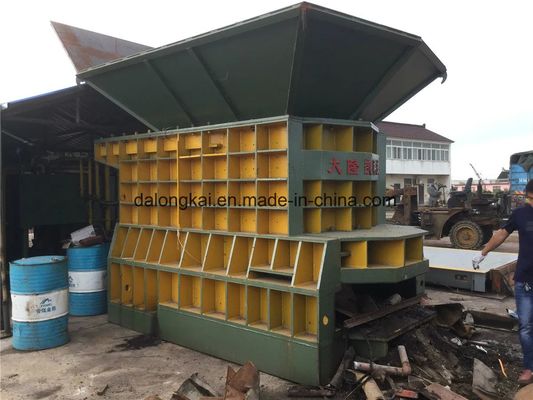

WS-315 Horizontal Scrap Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Various models are available to suit different operational requirements.
Key Features
- Horizontal structure allows for manual or automatic feeding with conveyor
- PLC control with push-button operation ensures safety and reliability
- High output capacity for efficient scrap processing
- Works with manual belting (HPM series)
Technical Specifications
Product Name:
WS Horizontal Metal Shear
Condition:
New
Application:
Scrap metal
Nominal Force:
400Ton
Driven Type:
Hydraulic
Max. Length To Shear:
1600mm
Voltage:
21.5Mpa, Customized
Color:
Customized
Automatic Grade:
Automatic
Commercial Terms
Minimum Order Quantity:
1 Set
Price:
Negotiable
Payment Terms:
30% T/T In Advance
Supply Ability:
5 sets/month
Delivery Time:
As per your requirement
Packaging Details:
Seaworthy packing
After-sales Service:
Engineers available for overseas service
Model Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
