xProduct Details
| Capacity | 8-12ton Per Hour | Motor | 110KW |
|---|---|---|---|
| Shear Time | 2-3 Time / Min | Pump | HY320*2 |
| Blade Length | 1400mm | Weight | 37ton |
| High Light | scrap shearing machine,hydraulic scrap shear |
||
Product Description

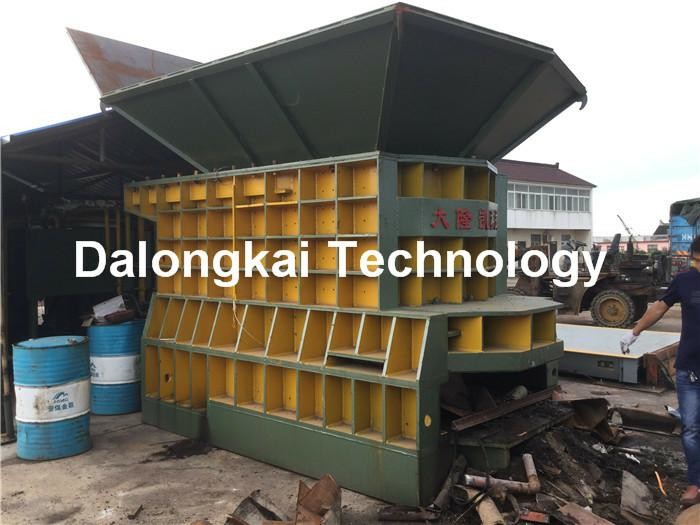

1600mm Trapeziform Blade Scrap Metal Shear WS - 6300 Automatic Hydraulic Drive
Applications
The Scrap Metal Shearing machine , which is widely used in recycling companies and ferrous & non-ferrous metal smelting industry , can help to shear metal scrap(steel parings, waste steel, waste copper & aluminum, waste stainless steel, scrap from discarded automobiles)
Specifications
1. For cutting scrap metal
2. No footing bolts needed
3. Diesel engine can be equipped for power
Advantages
The advantages of the container shearing machine as compared to common guillotine shears can be summarised as follows:
1. Low specific investment and running costs; continual loading of the shear in the feed hopper with simultaneous ejection of the cut scrap
2. Shear control carried out by grabber crane operator no additional operator needed, self-enclosed operation with integrated diesel engine
3. Collection and transport by towing vehicle for transport containers or flat bed trailer
1. Low specific investment and running costs; continual loading of the shear in the feed hopper with simultaneous ejection of the cut scrap
2. Shear control carried out by grabber crane operator no additional operator needed, self-enclosed operation with integrated diesel engine
3. Collection and transport by towing vehicle for transport containers or flat bed trailer
4. Efficient one-man loading, cutting and removal from one or several container shears using a digger
5. Little space required as compared to stationary shears
5. Little space required as compared to stationary shears
6. No assembly and foundation costs are needed for operation
7. Thanks to the horizontal cut with a large guided blade carriage there is little wear
the forces working on the blade carriage always tend towards the centre, avoiding twisting forces
7. Thanks to the horizontal cut with a large guided blade carriage there is little wear
the forces working on the blade carriage always tend towards the centre, avoiding twisting forces
Feature
1. High security.
When the machine is in the operating state, these wastes in the work bin will not splash out. Horizontal structure: feeding can be manual or automatic with conveyor
2. Removable, manual belting.
The removable machine is able to work anywhere, which really cuts transportation costs for customers.
3. High productivity, saving labor costs.
This machine equipped with suction pad is completely automatic, as long as one person can finish all operations.PLC control, push-button operation ,safe & reliable
|
Technical Specificarions |
Remark |
|||||
|
Shear cylinder
|
model |
YG360/250-1000 |
2 sets
|
|||
|
Nominal pressure |
3150KN*2
|
Trip
|
800MM
|
|||
|
press cylinder |
model |
YG280/220-800 |
1 set |
|||
|
Nominal pressure |
120KN |
Trip |
800MM |
|||
|
motor |
model |
Y280M-6 |
Power |
45kw |
|
|
|
speed
|
980 R / MIN |
Quantity |
2 sets |
|||
|
oil pump |
Model |
HY250Y-RP |
Pressure |
31.5 mpa |
|
|
|
Oil flow
|
250 ml / r |
Quantity |
2 sets |
|||
