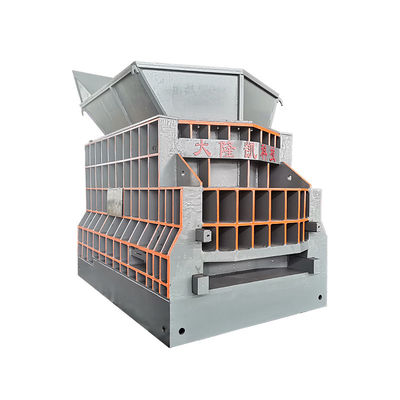

WS-630E VFD Energy Saving Scrap Metal Shear with 630 Tons Cutting Force and 1400mm Blade for 30% Power Reduction
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | DLK |
| Certification | CE, ISO 9001 |
| Model Number | WS-630E |
| Minimum Order Quantity | 1 Set |
| Price | USD 88000-98000 per Set |
| Packaging Details | Plastic Film Wrapping with Steel Frame, Container Transport |
| Delivery Time | 25-35 Working Days |
| Payment Terms | L/C, T/T |
| Supply Ability | 10 Sets per Month |
Product Details
| Model | WS-630E | Drive Type | Variable Frequency Drive |
|---|---|---|---|
| Max Cutting Force | 630 Tons | Blade Length | 1400 Mm |
| Shear Height | 300/420 Mm | Rated Power | 90 KW |
| Avg Power Consumption | 63-72 KW | Energy Saving | 20-30% |
| Control System | PLC + VFD + Remote | Cooling | Forced Air 52P |
| Hydraulic Pressure | ≤ 26 MPa | ||
| Highlight | VFD Energy Saving Shear,Smart Hydraulic Metal Cutter,Low Power Scrap Processor |
||
Product Description
WS-630E VFD Energy Saving Scrap Metal Shear 1400mm Blade 630 Ton 30% Power Reduction Smart Hydraulic Cutter
WS-630E Variable Frequency Drive Energy Saving Scrap Metal Shear
The WS-630E integrates smart Variable Frequency Drive (VFD) technology into the proven WS-630 platform, achieving 20-30% energy savings compared to fixed-speed hydraulic shears. The intelligent control system automatically adjusts motor speed and pump output based on actual load conditions, reducing both electricity consumption and operational costs.
Energy Saving Technology
- VFD Smart Control: Automatically matches motor RPM to hydraulic demand, eliminating wasted energy during idle and low-load phases
- 20-30% Power Reduction: Typical energy savings of 25% translates to significant annual electricity cost reduction
- Soft Start Function: Eliminates high inrush current, reducing stress on electrical components and extending motor life
- Load Sensing Hydraulics: Pump output adjusts in real-time based on cutting resistance for optimal efficiency
- Energy Monitoring Display: Real-time power consumption data shown on the PLC touch screen
- Eco Mode Operation: Automatic standby power reduction when machine is idle between cycles
Applications
Ideal for environmentally conscious recycling facilities, operations in regions with high electricity costs, and companies targeting green certification standards. Suitable for processing all standard scrap metal types including steel profiles, pipes, plates, and structural parts.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | WS-630E |
| Drive Type | Variable Frequency Drive (VFD) |
| Max Cutting Force | 630 Tons |
| Blade Length | 1400 mm |
| Shear Height | 300/420 mm |
| Cutting Speed | 3-4 times/min (load-adaptive) |
| Processing Capacity | 8-12 tons/hour |
| Rated Motor Power | 90 KW (VFD Controlled) |
| Average Power Consumption | 63-72 KW (30% energy saving) |
| Pump Type | A4V250 x 2 (Load-Sensing) |
| Hydraulic System Pressure | ≤ 26 MPa |
| Control System | PLC Touch Screen + VFD Module + Remote Control |
| Energy Monitoring | Real-time kW and kWh Display |
| Cooling System | Forced Air Cooler 52P |
| Power Supply | 380V/3P 50Hz |
| Machine Weight | 36 Tons |
Our Service
- 24/7 technical support with energy optimization consultation
- One year warranty including VFD system components
- Energy savings performance guarantee with commissioning
- Remote monitoring and diagnostic capability
- OEM & ODM customization available
Request an energy savings analysis for your specific application today.
