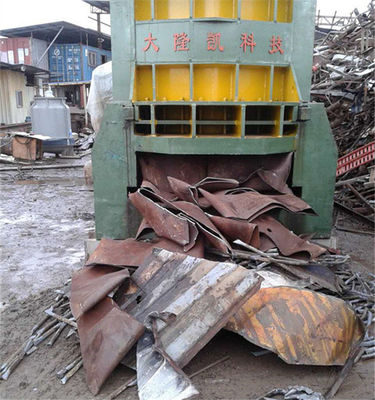

Full Automatic Scrap Metal Shear With Roll On Off System 400 Ton Force
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xApplication | Scrap Metal | Nominal Force | 400Ton |
---|---|---|---|
Electric | 380v/3HP 50HZ | Shear Time | 2.0 Time / Min |
General Motor | 90KW | Shear Height | 500MM |
Quality | Grade A | ||
Highlight | scrap metal cutting machine,scrap shearing machine |
Container Style Scrap Metal Shear WS - 5000 , Roll On / Off System
Advantages
compared to common guillotine shears ,the advantages of the horizontal shear can be summarised as follows:
1. Low specific investment and running costs; continual loading of the shear in the feed hopper with simultaneous ejection of the cut scrap
2. Shear control carried out by grabber crane operator no additional operator needed, self-enclosed operation with integrated diesel engine
3. Efficient one-man loading, cutting and removal from one or several container shears using a digger
4. Collection and transport by towing vehicle for transport containers or flat bed trailer
5. compared to stationary shears,little space is required.
6. No assembly and foundation costs are needed for operation
7. Thanks to the horizontal cut with a large guided blade carriage there is little wear
the forces working on the blade carriage always tend towards the centre, avoiding twisting forces
Applications
Scrap shear is used for economical scrap processing, easy operation and flexible transportation with
a roll on/roll off system. Various models for your choice.HPM series of horizontal balers with manual belting.
Feature
1. High security
When the machine is in the operating state, these wastes in the work bin will not splash out.
2. High productivity, saving labor costs
This machine equipped with suction pad is completely automatic, as long as one person can finish all operations.
3. Removable
The removable machine is able to work anywhere, which really cuts transportation costs for customers.
Technical Specificarions |
Remark |
|||||
Shear cylinder
|
model |
YG340/220-1000 |
2 sets
|
|||
Nominal pressure |
2500KN*2
|
Trip
|
1000MM
|
|||
press cylinder |
model |
YG280/220-800 |
1 set |
|||
Nominal pressure |
1500KN |
Trip |
800MM |
|||
motor |
model |
Y250M-6 |
Power |
45kw |
|
|
speed
|
980 R / MIN |
Quantity |
2 sets |
|||
oil pump |
Model |
HY250Y-RP |
Pressure |
31.5 mpa |
|
|
Oil flow
|
250 ml / r |
Quantity |
2 sets |
|||
cooling system |
model |
FCE-75P-C |
Quantity |
1 set |
|
