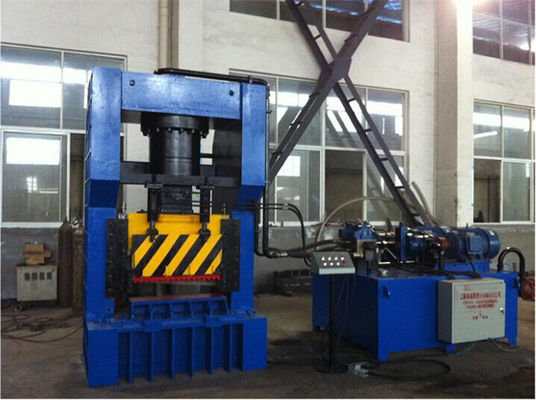

Semi Automatic Scrap Metal cutting Machine PLC Control 15KW ~ 44kW Available

Place of Origin Jiangsu P.R. China
Brand Name DLK
Model Number Gantry plate shear
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Seaworthy packing
Delivery Time 30 days
Payment Terms 30% T/T In Advance, L/C
Supply Ability 10 sets /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Scrap Metal Nominal Force 120Tons ~500Tons
Driven Type Hydraulic Voltage 21.5Mpa, Customized
Power 15KW~44kW Automatic Grade Semi-Automatic
Quality Grade A
High Light

scrap metal cutting machine

,

scrap shearing machine

Leave a Message
Product Description

Shearing the Boards Scrap Metal Shear  PLC Control / Hydraulic Drive





Introduction



Gantry plate shear machine adopts hydraulic transmission, compared with the mechanical drive type shears, has small volume, light weight, small inertia, low noise, stable movement, convenient operation, flexible, large shear section, scissors, not soft not hard mouth, when shear is not short of blasting, long service life, no gap again thin all good shear, convenient adjustment and operation safety.



This kind of machine is mainly applicable for processing various boards, shearing the boards into the materi of different specifications. Which can totally replace the flame cutting and reduce the working cost.





 Advantages



1. This equipment adopts hydraulic transmission, compared with the mechanical drive type shear machine, has small volume, light weight, small inertia, low noise, stable movement, convenient operation, flexible, large shear plane, scissors, convenient adjustment, the use of safe operation, easy to achieve overload protection;

2. This equipment has the function of manual and automatic, convenient operation, simple control, scissors mouth work in any position in the process of starting cut and stop, and can according to the size of the cut materials, arbitrary control cut the size of the mouth, in order to obtain the highest working efficiency;

3. This equipment is designed for fast, without any increase in power of the motor and pump displacement condition, in (about 250 tons) under shear speed fast, large shear material automatically converting speed. Recover the original shear force, so as to improve the work efficiency nearly doubled,



Technical parameters:



Model

Shearing force(ton)

Blade Length(mm)

Max.cutting material(mm)

Shearing Frequency(times/min)

Motor(KW)

Q15A-1200

120

600

18*500

4-7

15

Q15A-1600

160

600

20*500

4-7

18.5

Q15A-2000I

200

600/800

25*500

4-7

22

Q15A-2500I

250

600

30*500

4-7

22

Q15A-2500II

250

800

30*700

4-7

2*15

Q15A-3150

315

800

30*700

4-7

45

Q15A-4000

400

800

35*700

4-7

2*22

Q15A-5000

500

900

40*800

4-7

2*45

Q15B-1600

160

1200

16/12*1000

4-7

18.5

Q15B-2000

200

1200

18/16*1000

4-7

22

Q15B-2500I

250

1200/1600

25/20*1000

4-7

2*18.5

Q15B-3150

315

1200

30/25*1000

4-7

2*18.5
