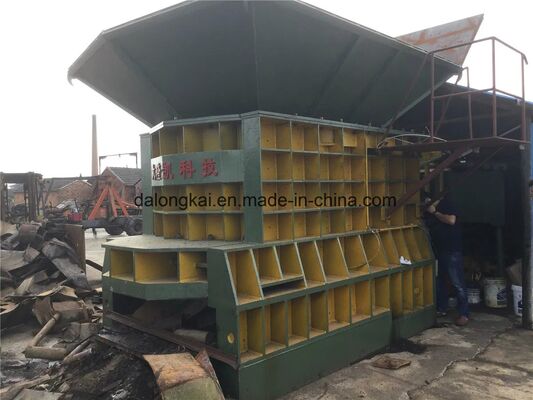

WS-800 Horizontal Metal Shear with 8000kn Max Cutting Force 1600mm Blade Length and 12-18t/H Production Rate
Product Details
| Max Cutting Force | 8000kn | Blade Length | 1600mm |
|---|---|---|---|
| Production Rate | 10-17t/H | Power | 180kw |
| Nominal Force | 400Ton | Driven Type | Hydraulic |
| Max Length | 1600mm | Voltage | 21.5Mpa |
| Automatic Grade | Automatic | Shear Height | 420/500 |
| Model NO. | WS-800 | Production Capacity | 5 Sets/Month |
| Shear Height | 420/500mm | ||
| Highlight | 8000kn Max Cutting Force Gantry Shear,1600mm Blade Length Horizontal Metal Shear,12-18t/H Production Rate Scrap Metal Shear |
||
Product Description
WS-800 Horizontal Stainless Steel Cutting Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation capabilities. Featuring a roll on/roll off system, this machine offers various models to meet different operational requirements.
Applications
Specifically engineered for scrap metal processing, this horizontal shear provides efficient and cost-effective material handling solutions for recycling and manufacturing operations.
Key Features
- Horizontal structure supporting both manual and automatic conveyor feeding
- PLC control system with push-button operation for safety and reliability
- High output capacity for maximum productivity
- Easy operation with flexible transportation via roll on/roll off system
- Manual belting compatibility with HPM series horizontal balers
Product Specifications
| Specification | Details |
|---|---|
| Product Name | WS Horizontal Metal Shear |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 400 Ton |
| Driven Type | Hydraulic |
| Max. Length To Shear | 1600mm |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Technical Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 5 sets /month |
| Delivery Time | As your requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers are available to overseas service |
Note: All specifications and commercial terms are subject to customization based on specific customer requirements and operational needs.
