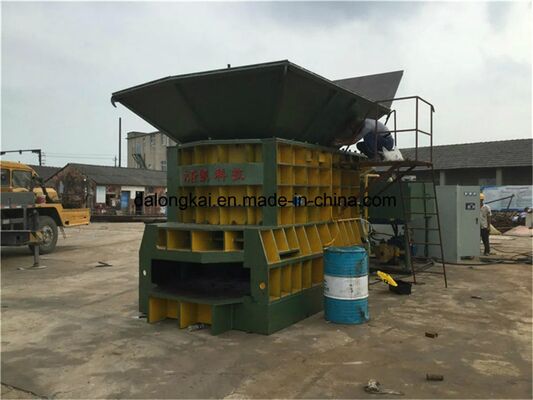

WS-400 Hydraulic Scrap Shear with 4000kn Max Cutting Force 1400mm Blade Length and 4-6t/H Production Rate
Product Details
| Max Cutting Force | 4000kn | Blade Length | 1400mm |
|---|---|---|---|
| Production Rate | 4-6t/H | Power | 90kw |
| Nominal Force | 400Ton | Driven Type | Hydraulic |
| Max Shear Length | 1600mm | Voltage | 21.5Mpa |
| Automatic Grade | Automatic | Shear Height | 300/420mm |
| Model | WS-400 | Production Capacity | 5 Sets/Month |
| Blade Length | 1000mm | Power | 74KW |
| Highlight | 4000kn Max Cutting Force Gantry Shear,1400mm Blade Length Hydraulic Scrap Shear,4-6t/H Production Rate Scrap Metal Cutting Machine |
||
Product Description
WS-400 Hydraulic Scrap Steel Cutting Machine
Product Overview
WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Various models are available to meet different production requirements.
Key Features
- Horizontal structure supporting both manual and automatic conveyor feeding
- PLC control with push-button operation for safety and reliability
- High output capacity for efficient scrap processing
- HPM series models available with manual belting options
Product Specifications
Product Name: WS Horizontal Metal Shear
Condition: New
Application: Scrap metal
Nominal Force: 400Ton
Driven Type: Hydraulic
Max. Length To Shear: 1600mm
Voltage: 21.5Mpa, Customized
Color: Customized
Automatic Grade: Automatic
Technical Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
Commercial Terms
Minimum Order Quantity: 1 Set
Price: Negotiable
Payment Terms: 30% T/T In Advance
Supply Ability: 5 sets /month
Delivery Time: As your requirement
Packaging Details: Seaworthy packing
After-sales Service: Engineers are available to overseas service
