WS-315 Horizontal Scrap Metal Shear Machine with 3150kn Max Cutting Force, 800mm Blade Length, and 3-5t/H Production Rate
Product Details
| Model NO. | WS-315 | Max Cutting Force | 3150kn |
|---|---|---|---|
| Blade Length | 800mm | Production Rate | 3-5t/H |
| Power | 60kw | Nominal Force | 400Ton |
| Driven Type | Hydraulic | Max Length To Shear | 1600mm |
| Voltage | 21.5Mpa | Automatic Grade | Automatic |
| Shear Height | 300/420mm | Max Cutting Force (WS-400) | 4000KN |
| Blade Length (WS-400) | 1000mm | Production Rate (WS-400) | 4-7t/h |
| Power (WS-400) | 74KW | ||
| Highlight | 3150kn Max Cutting Force Gantry Shear,800mm Blade Length Scrap Metal Shear,3-5t/H Production Rate Horizontal Shear Machine |
||
Product Description

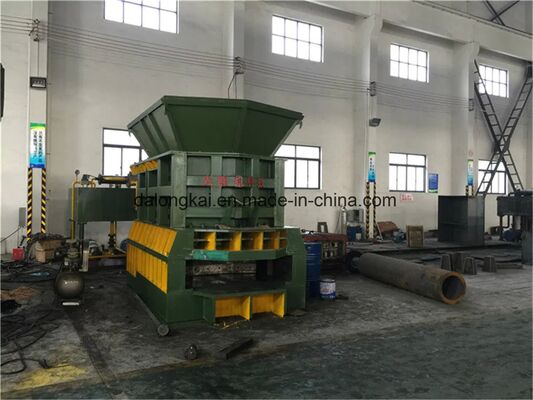

WS-315 Horizontal Scrap Metal Shear Machine
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation featuring a roll on/roll off system. Various models are available to meet different production requirements.
Key Applications
Specifically engineered for scrap metal processing operations, providing efficient and cost-effective material handling solutions.
Product Features
- Horizontal structure allowing manual or automatic feeding with conveyor systems
- PLC control with push-button operation for enhanced safety and reliability
- High output capacity for maximum productivity
- Easy operation with flexible transportation via roll on/roll off system
Technical Specifications
| Specification | Details |
|---|---|
| Product Name | WS Horizontal Metal Shear |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 400 Ton |
| Driven Type | Hydraulic |
| Max. Length To Shear | 1600mm |
| Voltage | 21.5 Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Performance Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 5 sets /month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
