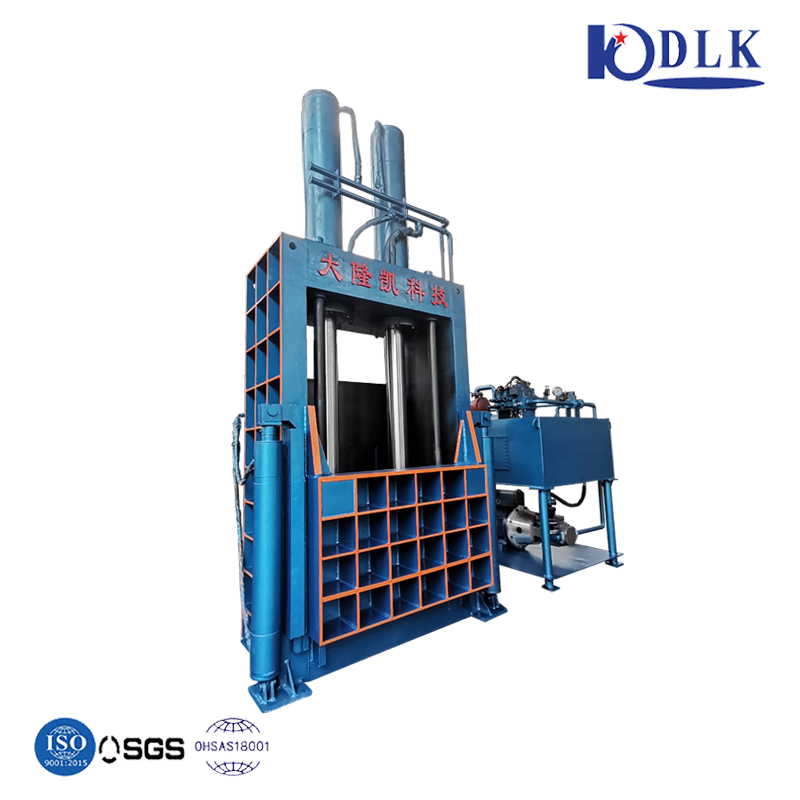

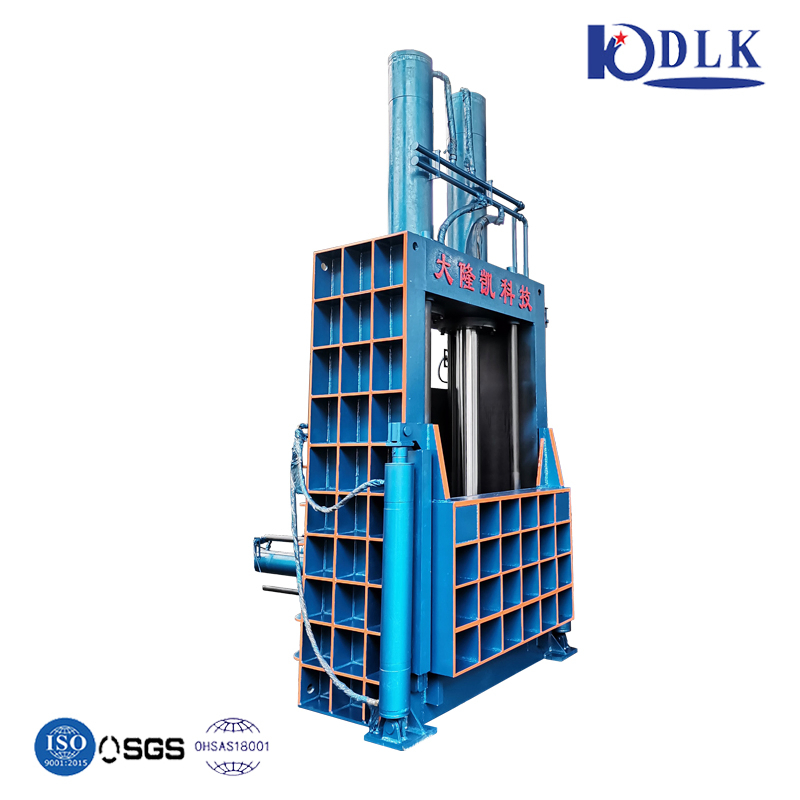

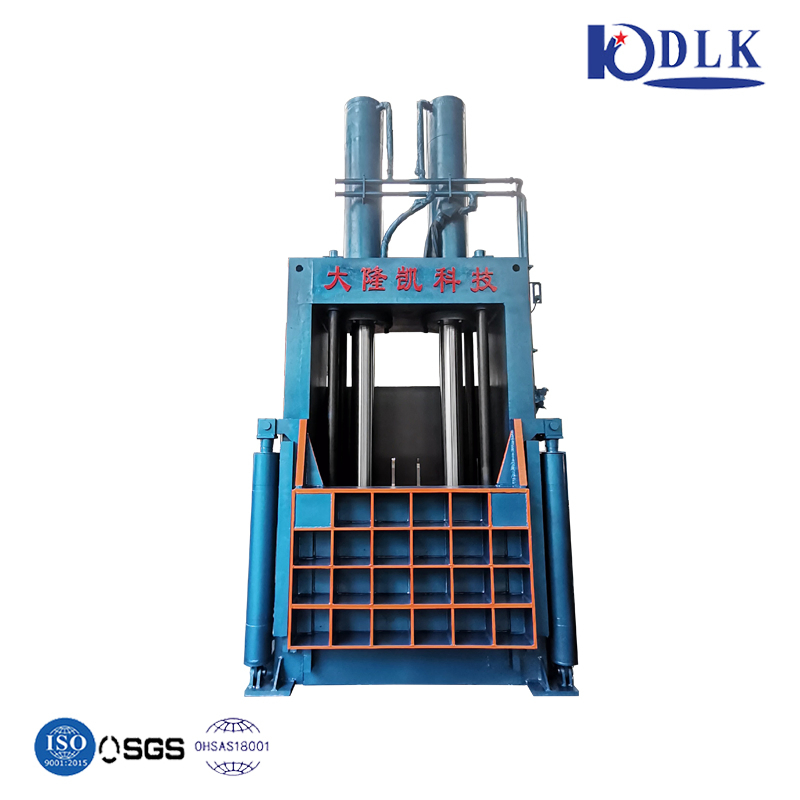

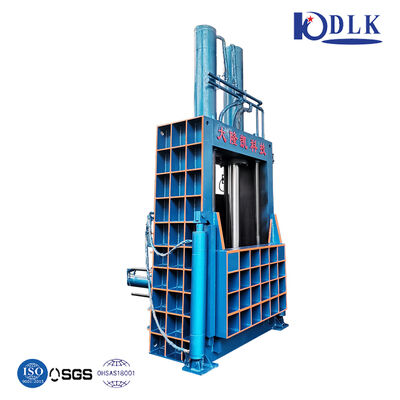

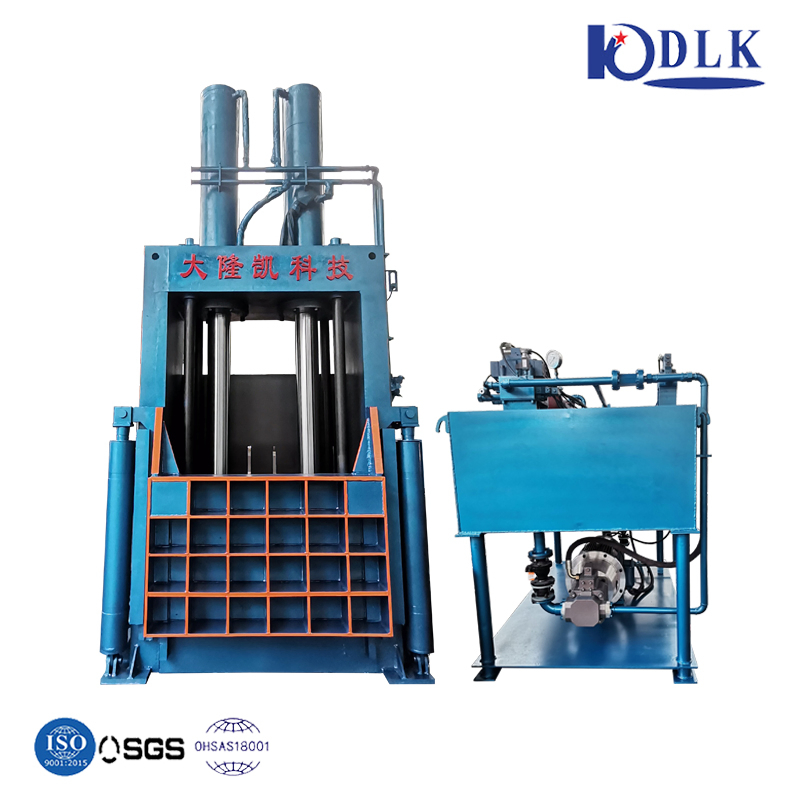

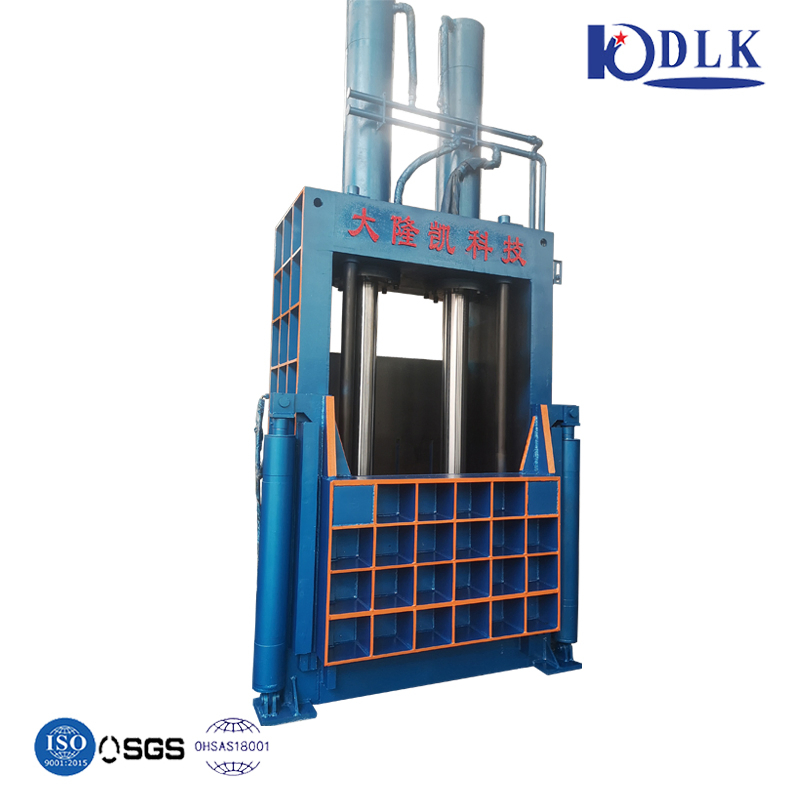

315 Ton Hydraulic Vertical Baler Machine for Plastic Bottle Compression and Baling
Product Details
| Model NO. | Y82-3150 | Material Processed | Plastic Bottle |
|---|---|---|---|
| Plastic Type | PET | Screw Type | Double-Screw |
| Main Cyl.Force | 315 Ton | Press Box Size | 2200*1100*3000(mm) |
| Bale Section | 1500*1100(mm) | Power | 60(Kw) |
| Bale Discharging | Bag Pushing | Power Type | Hydraulic |
| Production Capacity | 10 Sets/Month | Nominal Force | 3150KN/315t |
| Chamber Size | 2200*1100*3000 Mm | Bale Section | 2200*1100 Mm |
| Oil Cylinder Seals | Imported | ||
| Highlight | 315 Ton Hydraulic Vertical Baler,Plastic Bottle Baler Machine,Hydraulic Vertical Baler |
||
Product Description
315ton Hydraulic Vertical Baler Machine for Plastic Bottle
Applications
- Primarily used for compressing and baling woven bags/cloth, waste paper, and scrap paper for efficient transportation and storage
- Ideal for compressing and baling wool/wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification range

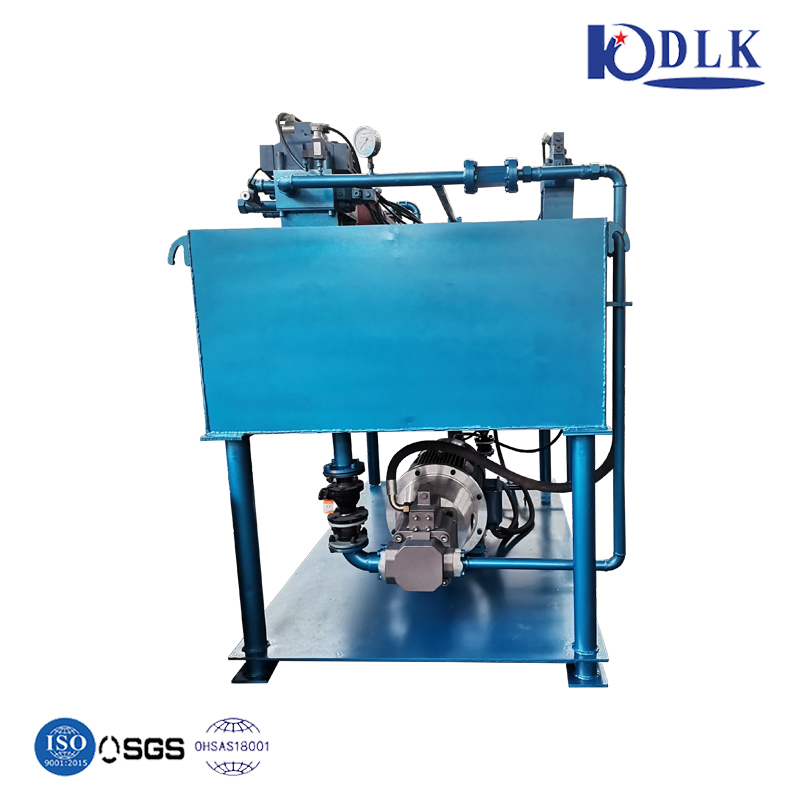

- Hydraulic pressure drive system using overhead type oil cylinder, operates without underground foundation
- All oil cylinders utilize imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
| Attribute | Details |
|---|---|
| Model Number | Y82-250~Y82-1600 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Model Specifications
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |
Machine Details
Manufacturing Facility
Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by manufacturing defects. For user-caused issues, spare parts are available at cost. Direct phone support is available for any problems.
Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China, near Shanghai Pudong Airport. We provide airport pickup and hotel booking services for visiting clients.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for over 20 years, with 50-60% of production dedicated to export markets.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
