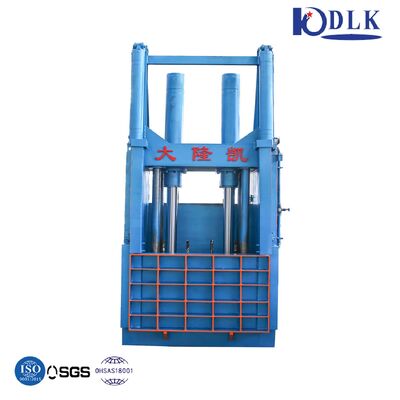

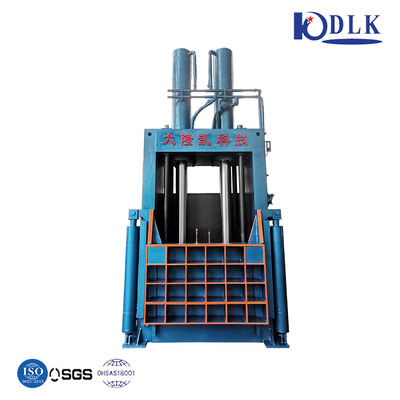

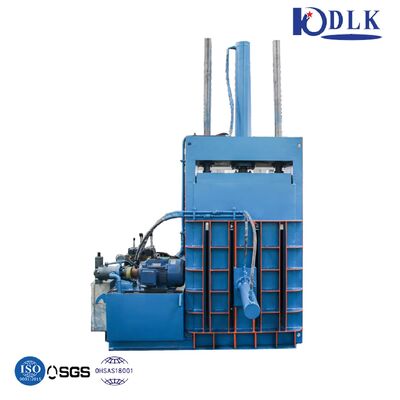

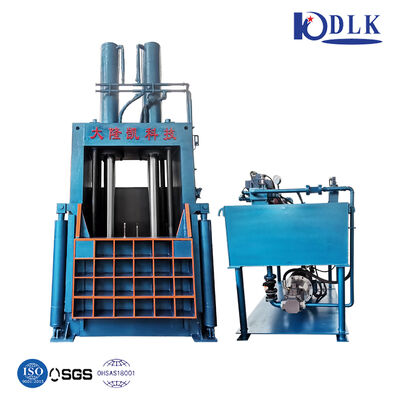

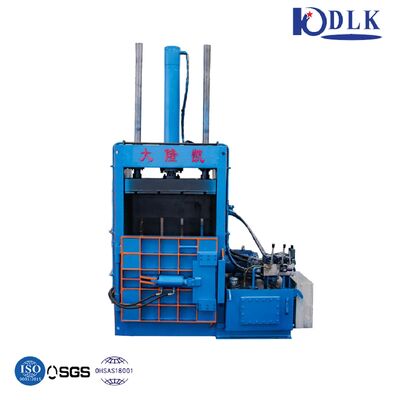

Y82-200 Hydraulic Vertical Baler Press Machine 200 Ton Semi-Automatic with 1500*1000*1600mm Press Box
Product Details
| Model NO. | Y82-200 | Type | Scrap Metal Baler |
|---|---|---|---|
| Automation | Semi-Automatic | Main Cyl.Force | 200 Ton |
| Press Box Size | 1500*1000*1600(mm) | Bale Section | 1500*1000(mm) |
| Power | 37(Kw) | Bale Discharging Method | Bag Pushing |
| Structure | Vertical | Production Capacity | 10 Sets/Month |
| Nominal Force | 2000KN/200t | Chamber Size | 1500*1000*1600 Mm |
| Oil Cylinder Type | Overhead Type | Sealing Rings | Imported |
| Customization | Available | ||
| Highlight | 200 Ton Hydraulic Vertical Baler,Semi-Automatic Paper Baler Machine,1500*1000*1600mm Scrap Metal Baler |
||
Product Description
Y82-200 Hydraulic Vertical Baler Press Machine
Applications
- Compressing and baling woven bags, cloth, waste paper, and scrap paper for efficient transportation and storage
- Compressing and baling wool and wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification options
- Hydraulic pressure drive with overhead type oil cylinder, operates without underground foundation
- All oil cylinders use imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
General Information
| Model Number | Y82-250~Y82-1600 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Baler Specifications
| Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|
| Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |
Machine Details
Frequently Asked Questions
How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We send spare parts free if problems are caused by us. For man-made problems, spare parts are available at cost. Direct phone support is always available.
Can I visit your factory before ordering?
Yes, welcome to visit our factory at 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We are near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% export proportion.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and service.
