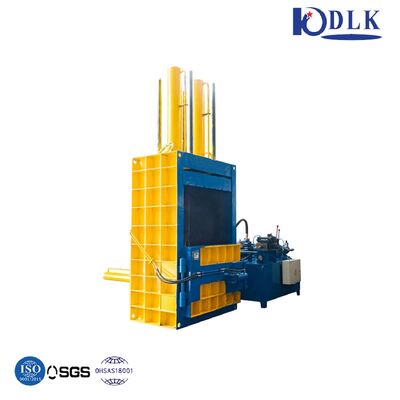

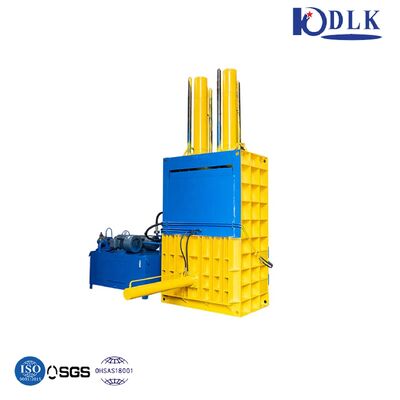

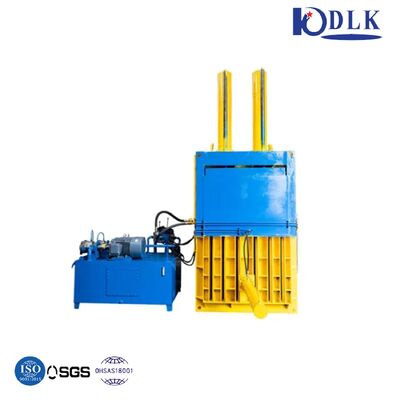

Y82-315 Hydraulic Vertical Baler Machine with 315 Ton Force and Computerized Control for Waste Paper Baling
Product Details
| Model NO. | Y82-315 | Material Processed | Plastic Bottle |
|---|---|---|---|
| Plastic Type | PET | Main Cyl.Force | 315 Ton |
| Press Box Size | 2200*1100*3000(mm) | Bale Section | 1500*1100(mm) |
| Power | 60(Kw) | Bale Discharging Method | Bag Pushing |
| Structure | Vertical | Production Capacity | 10 Sets/Month |
| Nominal Force | 3150KN/315t | Chamber Size | 2200*1100*3000 Mm |
| Bale Section | 2200*1100 | Power | 60KW |
| Bale Discharging Method | Turn-out Or PLC Control | ||
| Highlight | 315 Ton Hydraulic Vertical Baler Machine,Vertical Structure Paper Baler Machine,Computerized Control Waste Paper Baling Machine |
||
Product Description
Y82-315 Hydraulic Vertical Baler Machine
Applications
- Compressing and baling woven bags/cloth, waste paper, and scrap paper for convenient transportation and storage
- Compressing and baling wool/wool balls
Key Features
- Baling press pressure ranges from 15 tons to 400 tons with complete specification range
- Hydraulic pressure drive with overhead type oil cylinder, operates without underground foundation
- All oil cylinders use imported sealing rings for reliable quality and extended service life
- Customizable package block size and compression chamber dimensions according to customer requirements
Technical Specifications
| Model Number | Y82-250~Y82-1600 |
|---|---|
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
Commercial Terms
| Minimum Order Quantity | 1 Set |
|---|---|
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 15 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Model Specifications
| No. | Model | Nominal Force | Chamber Size | Bale Section | Power | Bale Discharging Method |
|---|---|---|---|---|---|---|
| 1 | Y82-25T | 250KN/25t | 1080×580×1500 mm | 1080×580mm | 15KW | Turn-out |
| 2 | Y82-63T | 630KN/63t | 1080×750×1500 mm | 1080×750mm | 15KW | Turn-out |
| 3 | Y82-100T | 1000KN/100t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 4 | Y82-160T | 1600KN/160t | 1100×700×1600 mm | 1100×700mm | 22KW | Turn-out |
| 5 | Y82-200 | 2000KN/200t | 1500×1000×1600 mm | 1500×1000mm | 37KW | Turn-out |
| 6 | Y82-250 | 2500KN/250t | 1500×1000×1600 mm | 1500×1000mm | 44KW | Turn-out or PLC control |
| 7 | Y82-315 | 3150KN/315t | 2200×1100×3000 mm | 2200×1100mm | 60KW | |
| 8 | Y82-400 | 4000KN/400t | 1500×1000×1600 mm | 1500×1000mm | 90KW |

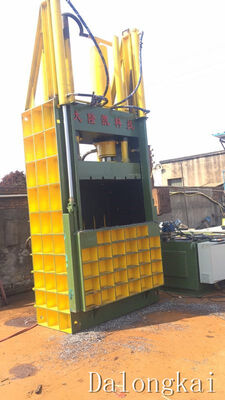

Manufacturing Workshop
Quality Certifications
Frequently Asked Questions
How can I get after-service support?
We provide one year guarantee and lifelong maintenance. We send spare parts free if problems are caused by us. For man-made problems, we provide spare parts at cost. Direct phone support available.
Can I visit your factory before ordering?
Yes, welcome to visit our factory. Address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We are near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% export proportion.
How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications. Factory inspection welcome anytime. Specialized in hydraulic balers and hydraulic shears.
Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and comprehensive service.
