Max shear force 250ton blade length 800mm Q15-2500 Hydraulic Gantry Plate Shear Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Q15-2500 | Max Shear Force | 250(Ton) |
|---|---|---|---|
| Blade Length | 800(mm) | Max Cutting Specifications | 30*500(mm) |
| Shearing Frequency | 4-7(Times/Min) | Motor Power | 30(Kw) |
| Driven Type | Hydraulic | Voltage | 380V,50HZ |
| Automatic Grade | Semi-Automatic | Production Capacity | 5 Sets/Month |
Product Description
Q15-2500 Gantry Plate Shear Machine
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting processes, significantly reducing operational costs while improving efficiency in sheet metal processing applications.
Product Information
Model Number:
Q15-1200~Q15-3150
Certification:
ISO9001,CE
Place of Origin:
Jiangsu P.R. China
Product Name:
Gantry plate shear
Condition:
New
Application:
Scrap metal
Nominal Force:
250Tons
Driven Type:
Hydraulic
Power:
30kW
Voltage:
380V,50HZ, Customized
Color:
Customized
Automatic Grade:
Semi-Automatic
Technical Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18*500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20*500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25*500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30*500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30*700 | 4-7 | 2*15 |
| Q15A-3150 | 315 | 800 | 30*700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35*700 | 4-7 | 2*22 |
| Q15A-5000 | 500 | 900 | 40*800 | 4-7 | 2*45 |
| Q15B-1600 | 160 | 1200 | 16/12*1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16*1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20*1000 | 4-7 | 2*18.5 |
| Q15B-3150 | 315 | 1200 | 30/25*1000 | 4-7 | 2*18.5 |

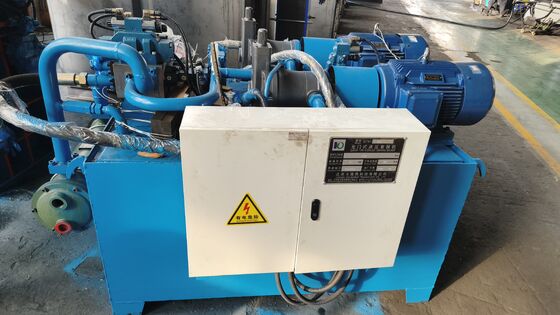

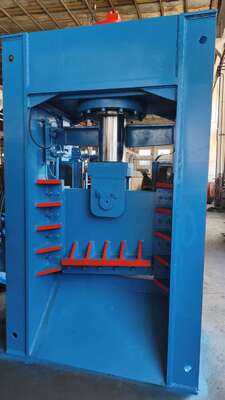

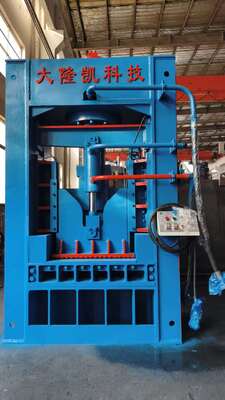

Product Images
Commercial Terms
Minimum Order:
1 Set
Price:
Negotiable
Payment Terms:
30% T/T In Advance
Supply Ability:
5 sets/month
Delivery Time:
50-60 days
Packaging:
Seaworthy packing
After-sales Service:
Engineers available for overseas service
