Q15B-1600 Gantry Shear with 160 Ton Max Shear Force 1200mm Blade Length and 16/12*1000mm Max Cutting for Scrap Metal Recycling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Q15B-1600 | Max Shear Force | 160(Ton) |
|---|---|---|---|
| Blade Length | 1200(mm) | Max Cutting Specifications | 16/12*1000(mm) |
| Shearing Frequency | 4-7(Times/Min) | Motor Power | 22(Kw) |
| Nominal Force | 120Tons ~315Tons | Driven Type | Hydraulic |
| Voltage | 21.5Mpa | Automatic Grade | Semi-Automatic |
| Production Capacity | 5 Sets/Month | Shearing Force | 160(ton) |
| Max Cutting Material | 16/12*1000(mm) | Motor | 18.5(KW) |
| Power | 15KW~44kW | ||
| Highlight | 160 Ton Max Shear Force Gantry Shear,1200mm Blade Length Steel Plate Shear Machine,16/12*1000mm Max Cutting Hydraulic Shear |
||
Product Description

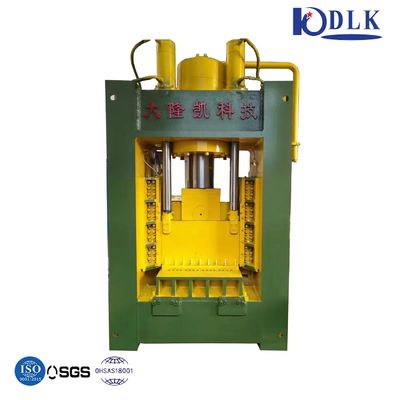

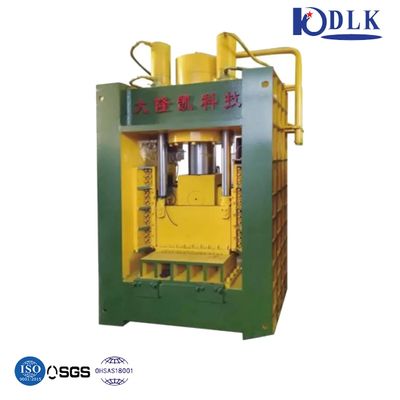

Q15b-1600 Gantry Steel Plate Shear Machine
This hydraulic gantry plate shear machine is designed for processing various steel plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods, significantly reducing operational costs while improving efficiency.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | Q15-1200~Q15-3150 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
| Product Name | Gantry Plate Shear |
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 120Tons ~315Tons |
| Driven Type | Hydraulic |
| Power | 15KW~44kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Performance Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18*500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20*500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25*500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30*500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30*700 | 4-7 | 2*15 |
| Q15A-3150 | 315 | 800 | 30*700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35*700 | 4-7 | 2*22 |
| Q15A-5000 | 500 | 900 | 40*800 | 4-7 | 2*45 |
| Q15B-1600 | 160 | 1200 | 16/12*1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16*1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20*1000 | 4-7 | 2*18.5 |
| Q15B-3150 | 315 | 1200 | 30/25*1000 | 4-7 | 2*18.5 |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Product Images

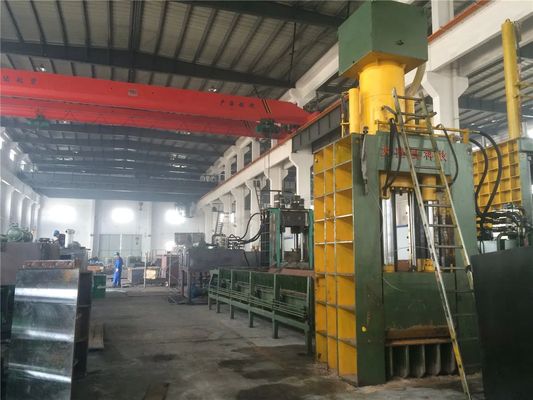

Factory & Certifications
Frequently Asked Questions
Q1: How can I get after-service support?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is available for any technical questions.
Q2: Can I visit your factory before placing an order?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are conveniently located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years. Export business constitutes 50-60% of our operations.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable technical suggestions and competitive pricing. Our credentials include third-party assessments, national patents, and CE, ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
