Q15b-3150 Gantry Plate Shear Machine with 315 Ton Max Shear Force 1200mm Blade Length and Hydraulic Power Type
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Q15B-3150 | Max Shear Force | 315(Ton) |
|---|---|---|---|
| Blade Length | 1200(mm) | Max Cutting | 30/25*1000(mm) |
| Shearing Frequency | 4-7(Times/Min) | Motor Power | 2*18.5(Kw) |
| Power Type | Hydraulic | Type | Gantry Hydraulic Press |
| Nominal Force | 120Tons ~315Tons | Driven Type | Hydraulic |
| Voltage | 21.5Mpa | Automatic Grade | Semi-Automatic |
| Production Capacity | 5 Sets/Month | Shearing Force | 315(ton) |
| Motor | 2*18.5(KW) | ||
| Highlight | 315 Ton Max Shear Force Gantry Shear,1200mm Blade Length Gantry Plate Shear Machine,Hydraulic Power Type Hydraulic Gantry Shear |
||
Product Description

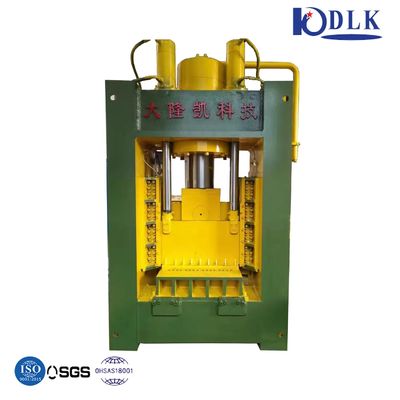

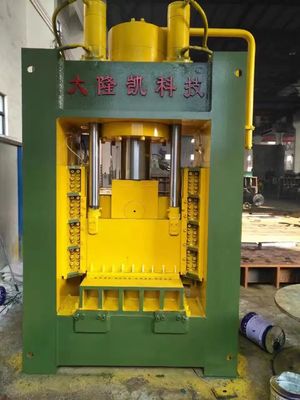

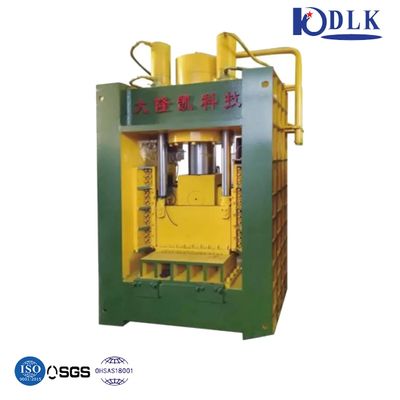

Q15b-3150 Gantry Steel Plate Shear Machine
This hydraulic gantry plate shear machine is designed for processing various steel plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods, significantly reducing operational costs while improving efficiency.
Product Specifications
Model Number:
Q15-1200~Q15-3150
Certification:
SGS
Place of Origin:
Jiangsu P.R. China
Product Name:
Gantry plate shear
Condition:
New
Application:
Scrap metal processing
Nominal Force:
120Tons ~315Tons
Driven Type:
Hydraulic
Power:
15KW~44kW
Voltage:
21.5Mpa, Customized
Color:
Customized
Automatic Grade:
Semi-Automatic
Technical Specifications
| Model | Shearing force (ton) | Blade Length (mm) | Max. cutting material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18*500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20*500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25*500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30*500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30*700 | 4-7 | 2*15 |
| Q15A-3150 | 315 | 800 | 30*700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35*700 | 4-7 | 2*22 |
| Q15A-5000 | 500 | 900 | 40*800 | 4-7 | 2*45 |
| Q15B-1600 | 160 | 1200 | 16/12*1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16*1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20*1000 | 4-7 | 2*18.5 |
| Q15B-3150 | 315 | 1200 | 30/25*1000 | 4-7 | 2*18.5 |
Commercial Terms
Minimum Order Quantity:
1 Set
Price:
Negotiable
Payment Terms:
30% T/T In Advance
Supply Ability:
10 sets/month
Delivery Time:
As per requirement
Packaging Details:
Seaworthy packing
After-sales Service:
Engineers available for overseas service
Product Gallery
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is available for any issues.
Q2: Can I visit your factory before placing an order?
Yes, we welcome visits to our factory. Our location: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We are conveniently located near Shanghai Pudong Airport and provide airport pickup service. Hotel booking assistance is available.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years. Export accounts for 50-60% of our business.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. Our credentials include third-party assessments, national patents, and CE, ISO certifications for all equipment. We welcome factory inspections anytime and specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
