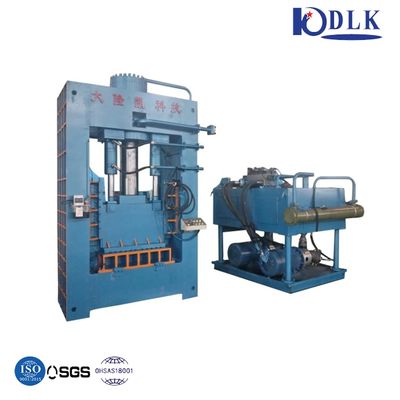

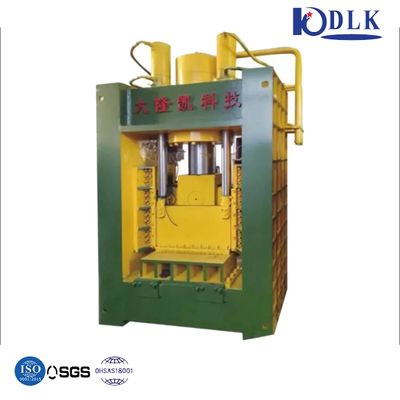

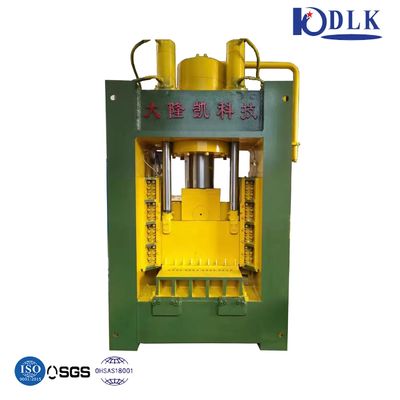

Q15A-4000 Gantry Plate Shear Machine with 400 Ton Max Shear Force 800mm Blade Length and 35*700mm Max Cutting Specifications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Shear Force | 400(Ton) | Blade Length | 800(mm) |
|---|---|---|---|
| Max Cutting | 35*700(mm) | Shearing Frequency | 4-7(Times/Min) |
| Motor Power | 2*22(Kw) | Nominal Force | 120Tons ~315Tons |
| Driven Type | Hydraulic | Voltage | 21.5Mpa |
| Automatic Grade | Semi-Automatic | Shearing Force | 120-500(ton) |
| Max Material | 18-40*500-1000(mm) | Power Range | 15KW~44kW |
| Production Capacity | 10 Sets/Month | Model Variants | Q15A-1200 To Q15B-3150 |
| Motor Configuration | Single/Dual | ||
| Highlight | 400 Ton Max Shear Force Gantry Plate Shear Machine,800mm Blade Length Gantry Shear,35*700mm Max Cutting Specifications Hydraulic Shear Machine |
||
Product Description
Q15A-4000 Gantry Plate Shear Machine
Product Overview
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting methods while significantly reducing operational costs.
Technical Specifications
| Model Number | Q15-1200~Q15-3150 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
| Product Name | Gantry Plate Shear |
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 120Tons ~315Tons |
| Driven Type | Hydraulic |
| Power | 15KW~44kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Model Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18*500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20*500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25*500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30*500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30*700 | 4-7 | 2*15 |
| Q15A-3150 | 315 | 800 | 30*700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35*700 | 4-7 | 2*22 |
| Q15A-5000 | 500 | 900 | 40*800 | 4-7 | 2*45 |
| Q15B-1600 | 160 | 1200 | 16/12*1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16*1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20*1000 | 4-7 | 2*18.5 |
| Q15B-3150 | 315 | 1200 | 30/25*1000 | 4-7 | 2*18.5 |
Product Images
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Manufacturer Information
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in the waste recycling equipment industry for over a decade. As a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products include shear balers, scrap balers, scrap shears, and recycling cranes.
In addition to scrap metal processing equipment, we also supply horizontal and vertical balers for compacting plastic, paper, cardboard, straw, textile, and other types of waste.
Our Dalongkai brand has received critical acclaim both domestically and overseas. We have successfully passed TUV and ISO9001 Quality Management System certifications and are currently obtaining European standards such as CE and UL approval.
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send spare parts free of charge if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is available for any problems.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R China. We are located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE, and ISO certifications for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and hydraulic shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory price based on superior products and comprehensive service.
