Q15A-2500L Gantry Plate Shear Machine with 250 Ton Max Shear Force, 600mm Blade Length, and 30*500mm Max Cutting Specifications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Q15A-2500l | Max Shear Force | 250(Ton) |
|---|---|---|---|
| Blade Length | 600(mm) | Max Cutting Specifications | 30*500(mm) |
| Shearing Frequency | 4-7(Times/Min) | Motor Power | 22(Kw) |
| Production Capacity | 10 Sets/Month | Nominal Force | 120Tons ~315Tons |
| Driven Type | Hydraulic | Voltage | 21.5Mpa, Customized |
| Automatic Grade | Semi-Automatic | Shearing Force | 250(ton) |
| Max.cutting Material | 30*500(mm) | Motor | 22(KW) |
| Highlight | 250 Ton Max Shear Force Gantry Shear,600mm Blade Length Plate Shear Machine,30*500mm Max Cutting Specifications Gantry Plate Shear |
||
Product Description

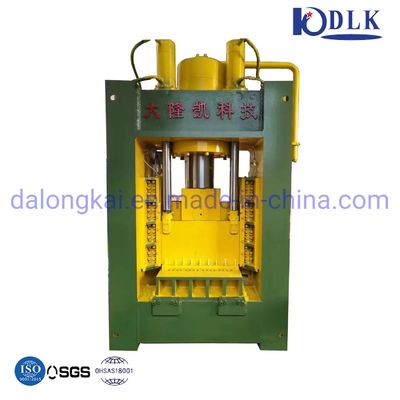

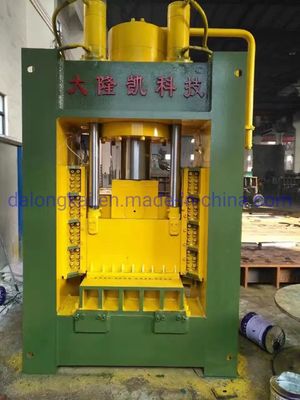

Q15A-2500L Gantry Plate Shear Machine
Product Overview
This hydraulic gantry plate shear machine is designed for processing various metal plates by shearing them into materials of different specifications. It effectively replaces flame cutting methods, significantly reducing operational costs while maintaining precision and efficiency.
Key Specifications
| Model Number | Q15-1200~Q15-3150 |
|---|---|
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
| Product Name | Gantry Plate Shear |
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 120Tons ~315Tons |
| Driven Type | Hydraulic |
| Power | 15KW~44kW |
| Voltage | 21.5Mpa, Customized |
| Automatic Grade | Semi-Automatic |
Technical Performance Data
| Model | Shearing Force (ton) | Blade Length (mm) | Max. Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18×500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20×500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25×500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30×500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30×700 | 4-7 | 2×15 |
| Q15A-3150 | 315 | 800 | 30×700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35×700 | 4-7 | 2×22 |
| Q15A-5000 | 500 | 900 | 40×800 | 4-7 | 2×45 |
| Q15B-1600 | 160 | 1200 | 16/12×1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16×1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20×1000 | 4-7 | 2×18.5 |
| Q15B-3150 | 315 | 1200 | 30/25×1000 | 4-7 | 2×18.5 |
Primary Applications
This series of gantry plate shear machines is engineered for processing various metal plates by cutting them into materials of different specifications. It completely replaces flame cutting processes while significantly reducing operational costs. The machine is particularly suitable for cold shearing of electrolytic copper plates, nickel plates, and shipbuilding materials.
Commercial Terms
| Minimum Order Quantity | 1 Set |
|---|---|
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per customer requirements |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
