Q15A-1600 Gantry Plate Shear Machine with 160 Ton Max Shear Force, 600mm Blade Length, and 20*500mm Max Cutting
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Shear Force | 160 Ton | Blade Length | 600 Mm |
|---|---|---|---|
| Max Cutting | 20x500 Mm | Shearing Frequency | 4-7 Times/Min |
| Motor Power | 18.5 Kw | Nominal Force | 120-315 Tons |
| Driven Type | Hydraulic | Voltage | 21.5 Mpa |
| Automatic Grade | Semi-Automatic | Production Capacity | 10 Sets/Month |
| Shearing Force | 160 Ton | Max Material | 20x500 Mm |
| Power | 18.5 Kw | Hydraulic Pressure | 21.5 Mpa |
| Frequency | 4-7 Times/Min | ||
| Highlight | 160 Ton Max Shear Force Gantry Shear,600mm Blade Length Plate Shear Machine,20*500mm Max Cutting Gantry Plate Shear |
||
Product Description

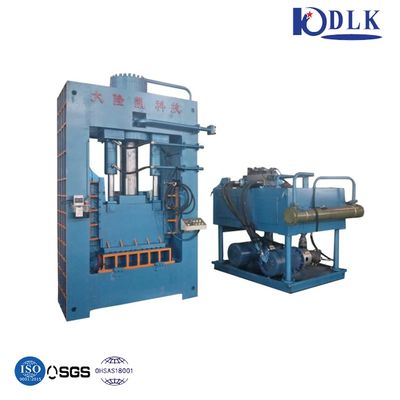

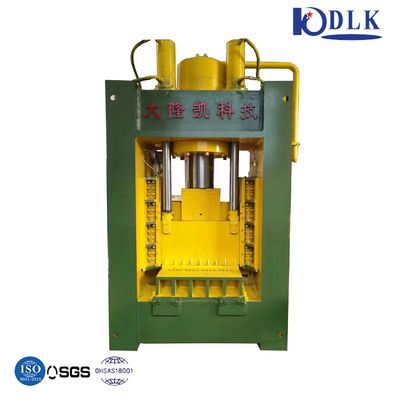

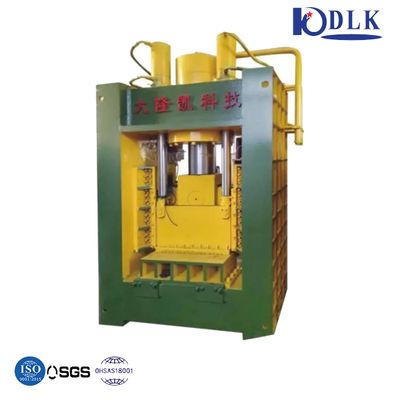

Q15A-1600 Gantry Plate Shear Machine
Product Overview
This hydraulic gantry plate shear machine is designed for processing various metal plates, cutting them into materials of different specifications. It effectively replaces flame cutting processes, significantly reducing operational costs while improving efficiency.
Technical Specifications
| Model Number | Q15-1200~Q15-3150 |
| Certification | SGS |
| Place of Origin | Jiangsu P.R. China |
| Product Name | Gantry Plate Shear |
| Condition | New |
| Application | Scrap Metal Processing |
| Nominal Force | 120Tons ~ 315Tons |
| Driven Type | Hydraulic |
| Power | 15KW ~ 44kW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Detailed Model Specifications
| Model | Shearing Force (ton) | Blade Length (mm) | Max Cutting Material (mm) | Shearing Frequency (times/min) | Motor (KW) |
|---|---|---|---|---|---|
| Q15A-1200 | 120 | 600 | 18*500 | 4-7 | 15 |
| Q15A-1600 | 160 | 600 | 20*500 | 4-7 | 18.5 |
| Q15A-2000I | 200 | 600/800 | 25*500 | 4-7 | 22 |
| Q15A-2500I | 250 | 600 | 30*500 | 4-7 | 22 |
| Q15A-2500II | 250 | 800 | 30*700 | 4-7 | 2*15 |
| Q15A-3150 | 315 | 800 | 30*700 | 4-7 | 45 |
| Q15A-4000 | 400 | 800 | 35*700 | 4-7 | 2*22 |
| Q15A-5000 | 500 | 900 | 40*800 | 4-7 | 2*45 |
| Q15B-1600 | 160 | 1200 | 16/12*1000 | 4-7 | 18.5 |
| Q15B-2000 | 200 | 1200 | 18/16*1000 | 4-7 | 22 |
| Q15B-2500I | 250 | 1200/1600 | 25/20*1000 | 4-7 | 2*18.5 |
| Q15B-3150 | 315 | 1200 | 30/25*1000 | 4-7 | 2*18.5 |
Product Images

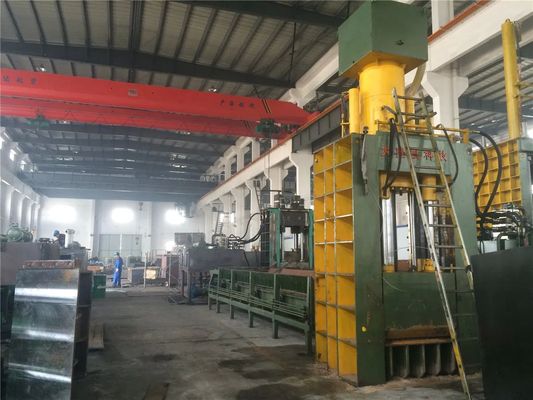

Manufacturing Facility
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts for free if problems are caused by manufacturing defects. For user-caused issues, we provide spare parts at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our facility is located at 29# Panlongshan Road, Jiangyin City, Jiangsu Province, 214429, P.R. China. We are conveniently located near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years. Export business accounts for 50-60% of our production.
Q4: How can I trust your company?
With 20 years of professional design experience, we provide suitable suggestions and competitive pricing. We hold national patents, CE certification, and ISO standards for all equipment. Factory inspections are welcome, and we specialize in hydraulic balers and shears.
Q5: Is your price competitive?
We supply only high-quality machines and provide the best factory pricing based on superior products and comprehensive service support.
