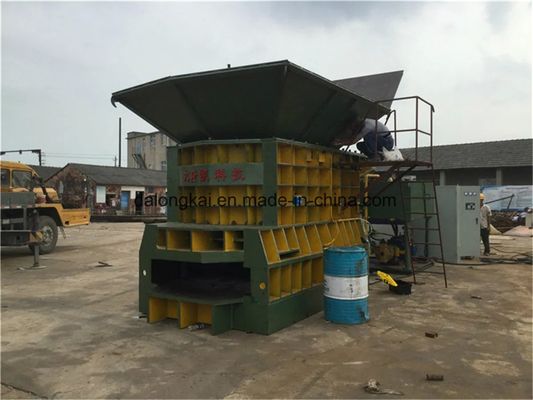

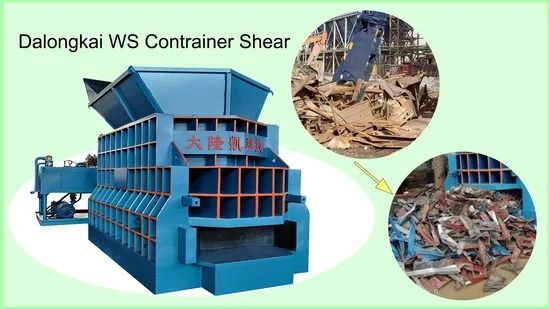

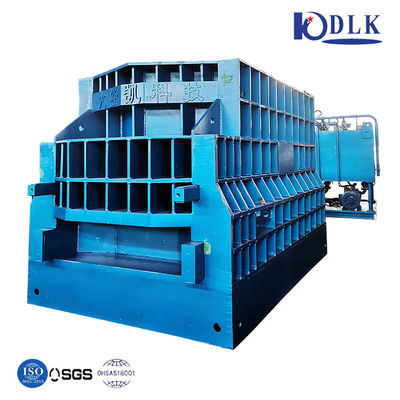

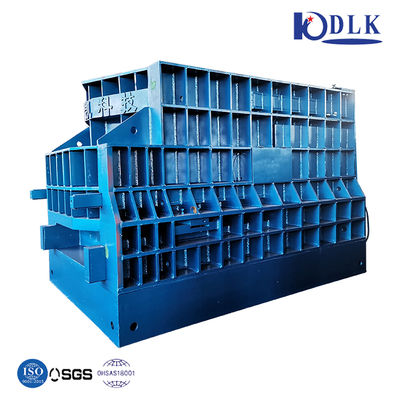

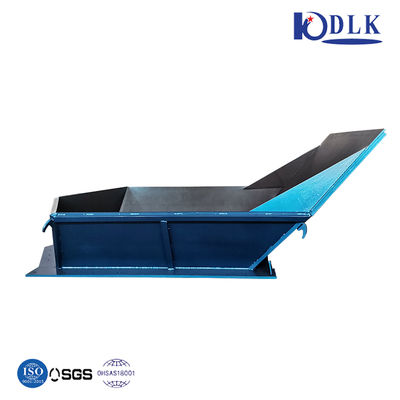

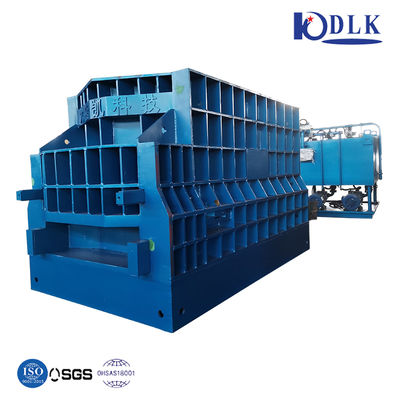

WS-800 Hydraulic Gantry Shear with 8000kn Max Cutting Force 1600mm Blade Length and 10-17t/H Production Rate
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | WS-800 | Type | Scrap Metal Shredder |
|---|---|---|---|
| Automation | Automatic | Max Cutting Force | 8000kn |
| Blade Length | 1600mm | Production Rate | 10-17t/H |
| Power | 90kw | Nominal Force | 400Ton |
| Driven Type | Hydraulic | Max Length | 1600mm |
| Voltage | 21.5Mpa | Automatic Grade | Automatic |
| Shear Height | 420/500mm | Production Capacity | 5 Sets/Month |
| Color | Customized | ||
| Highlight | 8000kn Max Cutting Force Gantry Shear,1600mm Blade Length Hydraulic Shear,10-17t/H Production Rate Scrap Metal Shear |
||
Product Description
WS-800 Hydraulic Automatic Steel Shear Cutting Machine
Product Overview
The WS Horizontal Metal Shear is designed for economical scrap processing with easy operation and flexible transportation via a roll on/roll off system.
Key Applications
Ideal for scrap metal processing across various industrial applications.
Main Features
- Horizontal structure allows for manual or automatic feeding with conveyor
- PLC control with push-button operation for safe and reliable performance
- High output capacity for efficient processing
Product Specifications
| Product Name | WS Horizontal Metal Shear |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 400Ton |
| Driven Type | Hydraulic |
| Max. Length To Shear | 1600mm |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Automatic |
Technical Specifications
| Model | Max Cutting Force (KN) | Blade Length (mm) | Shear Height (mm) | Production Rate (t/h) | Power (KW) |
|---|---|---|---|---|---|
| WS-400 | 4000 | 1000 | 300/420 | 4-7 | 74 |
| WS-500 | 5000 | 1400/1600 | 300/420 | 6-9 | 90 |
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 135 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 180 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 225 |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 5 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Product Images
Factory
Workshop
Packaging & Shipping
Certification
Frequently Asked Questions
Q1: How can I get the after-service?
A: We provide one year guarantee and lifelong maintenance. We will send you spare parts for free if problems are caused by us. For man-made problems, spare parts are available at cost. Any problem, you can call us directly.
Q2: Can I visit your factory before ordering?
A: Welcome to visit our factory at 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We're near Shanghai Pudong Airport and can provide airport pickup and hotel booking service.
Q3: Are you a factory or trade company?
A: We are a manufacturer with our own factory for 20 years, with 50-60% export proportion.
Q4: How can I trust your company?
A: With 20 years of professional design, we provide suitable suggestions and competitive prices. Our credentials include:
- National patents and CE, ISO certifications for all equipment
- Open for factory inspection anytime (near Shanghai Pudong airport)
- Specialized in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
A: We only supply good quality machines and offer the best factory price based on superior products and service.
