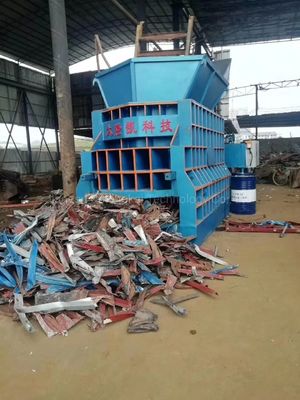

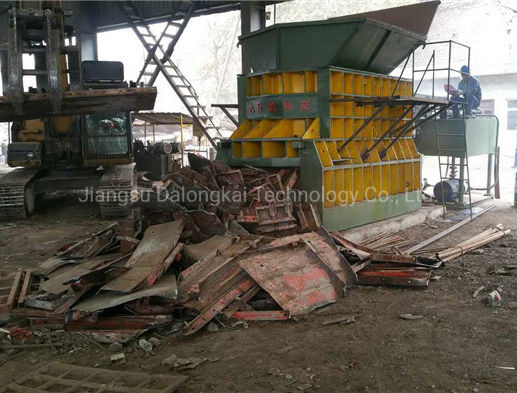

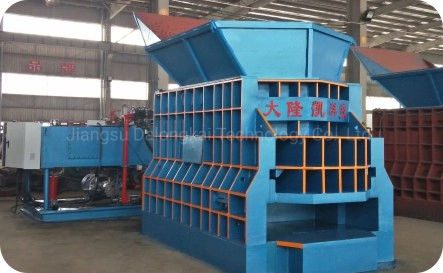

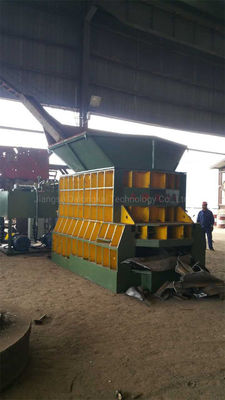

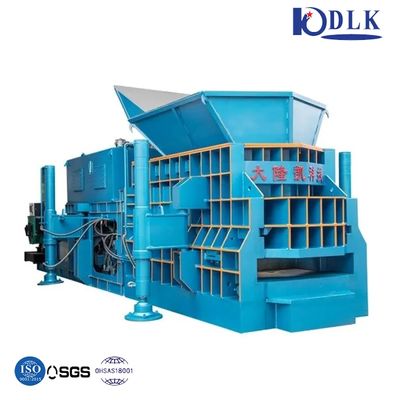

WS-500 Gantry Shear with 5000kn Max Cutting Force and 1400/1600mm Blade Length Hydraulic Metal Shear Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Cutting Force | 5000kn | Blade Length | 1400/1600mm |
|---|---|---|---|
| Production Rate | 6-9t/H | Power | 90kw |
| Shearing Hydro-Cylinder | YG450/280 | Hydro-Cylinder Quantity | 2 |
| Nominal Thrust | 4000Knx2 | Push Hydro-Cylinder | YG320/220 |
| Push Thrust | 2000Kn | Hydraulic Pressure | <22Mpa |
| Cutting Dimensions | 1600/420mm | Shearing Times | 2-4 Times/Min |
| Operating Mode | Mechanical Loading, PLC Control | Power Specification | 415V/3P 50Hz |
| Main Machine Power | 220Kw | ||
| Highlight | WS-500 Gantry Shear,5000kn Max Cutting Force Hydraulic Metal Shear Machine,1400/1600mm Blade Length Gantry Shear |
||
Product Description
WS-500 Automatic Hydraulic Metal Shear Machine
WS-500 Horizontal Metal Container Shear
This scrap shear is designed for economical scrap processing with easy operation and flexible transportation via roll on/roll off system. Various models are available in the HPM series of horizontal balers with manual belting.
Key Features
- Horizontal structure allows for manual or conveyor-assisted automatic feeding
- PLC control with push-button operation for safe and reliable performance
- High output capacity for efficient scrap processing
Technical Specifications
| Parameter | Content | Remark |
|---|---|---|
| Shearing Hydro-Cylinder | Model: YG450/280 Quantity: 2 Nominal Thrust: 4000Knx2 |
|
| Push Hydro-Cylinder | Model: YG320/220 Quantity: 1 Nominal Thrust: 2000Kn |
|
| Hydraulic System Working Pressure | <22Mpa | |
| Cutting Length/Height | 1600/420mm | |
| Shearing Times | 2-4 Times/Min | Empty load Load operation |
| Operating Mode | Mechanical Loading Materials, Push-Button & PLC Control | (With The Remote Control) |
| Power Specification | 415V/3P 50Hz | (According to your requirement) |
| Main Machine Power | 220Kw | (not including system of cooling, heating and filtering) |
| Oil Tank Size | 4000X2000X800 (6000L) | |
| Motor | Model: Y2-250M-4 Quantity: 4 Rated Speed: 1470 Rpm Rated Power: 55 Kw |
|
| Pump | Model: A4V250 Quantity: 4 Nominal Displacement: 250ml/r Rated Pressure: 31.5Mpa |
Other Available Models
| Model | Max Cutting Force(KN) | Blade Length(mm) | Shear Height(mm) | Production Rate(t/h) | Power(KW) |
|---|---|---|---|---|---|
| WS-630 | 6300 | 1400/1600 | 300/420 | 8-15 | 110 |
| WS-800 | 8000 | 1600 | 420/500 | 12-18 | 220 |
| WS-1000 | 10000 | 1600/2100 | 420/500 | 15-25 | 360 |
About Jiangsu Dalongkai Technology Co., Ltd.
We specialize in manufacturing scrap metal recycling processing and hydraulic equipment. With strong technology, advanced manufacturing lines, and comprehensive testing devices, we produce various hydraulic scrap balers, scrap shears (including container shears), hydraulic metal balers, garbage compactors, briquetting presses, sheet metal shears, and other non-standard equipment.
Our machines are ideal for scrapyards, steel mills, scrap recycling processing industry, and nonferrous & ferrous smelting industry. We export worldwide to Russia, India, South Africa, Southeast Asia, and other markets.
Finished Products
Packaging
Frequently Asked Questions
Q1: How can I get after-service support?
A: We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by us. For man-made problems, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
A: Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We're near Shanghai Pudong Airport and can provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
A: We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
A: With 20 years of professional design experience, we offer suitable suggestions and competitive pricing:
- Third-party assessed with national patents and CE, ISO certifications
- Factory inspections welcome - conveniently located near Shanghai Pudong airport
- Specialized in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
A: We supply only high-quality machines and offer the best factory price based on superior products and service.
