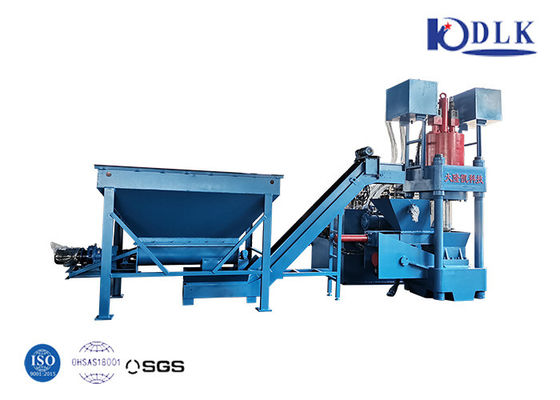

Y83-630 Metal Chip Briquetting Machine 120 Mm Automatic Vertical

Place of Origin Jiangsu P.R. China
Brand Name DLK
Certification CE
Model Number Y83-630
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Seaworthy packing
Delivery Time 30 days
Payment Terms 30% T/T In Advance
Supply Ability 5 sets /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Machine Type Vertical Metal Chip Briquetting Machine Hydraulic System Working Pressure <29MPa
Block Size Φ200x~100mm Nominal Force 630 Tons
Briquette Diameter 120 Mm Quality Grade A
Power 60kW Handling Material Crushed Material (iron, Steel, Aluminum, Copper)
Color Gray & Green (Customized) Warranty 1 Year
High Light

Metal Chip Briquetting Machine


120 mm Metal Briquetting Machine


Automatic Metal Briquetting Machine

Leave a Message
Product Description

Y83-360 Cheaper Automatic Vertical Metal Chip Briquetting Machine

Product Description

Y83 series briquette machine is mainly used to directly cold-press metal raw materials such as cast iron scraps, steel scraps, copper scraps, aluminum scraps, and high-quality mineral powder into 3-6 kg cylinders or other shaped cakes through high pressure, so as to facilitate storage. Transportation and reduce the loss of transportation and smelting in the process of recycling and reuse.


Technical Parameters

NO. Parameter name and content Remark
1 Master Cylinder Model YG520/300 Qty. 1pc 595 Ton
Normal Force 4650kN Stroke 430mm
2 Boost Cylinder Model YG135/70 Qty. 1pc 35 Ton
Normal Force 350kN Stroke 440mm
3 Hydraulic System Working Pressure <29MPa
4 Block Size Φ200x~100mm
5 Block Density (Steel) ≤3500kg/m³

The parameters in the above table are for reference only.

Y83-630 Metal Chip Briquetting Machine 120 Mm Automatic Vertical 0


1. The electrical part adopts imported PLC automatic control system, which has strong anti-interference ability and low failure rate.

2. The body adopts the overall steel structure, which has high strength and good stability, and does not need to install anchor screws.

3. The machine adopts hydraulic transmission, highly professional integral valve block, and large flow diameter, which reduces the pressure loss of the system and eliminates the drawback of leakage.

4. The use of cartridge valve, electro-hydraulic proportional valve and unique oil circuit design make the hydraulic system perfect, even if it works under long-term heavy load, the system will not be powerless.




Without adding any additives, various granular and powdered cast iron, aluminum, copper, magnesium, titanium and molybdenum can be pressed into high-density briquette, which can be directly put into the furnace for smelting, which greatly reduces the cost.


Y83-630 Metal Chip Briquetting Machine 120 Mm Automatic Vertical 1


Company Profile

Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our Dalongkai brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Y83-630 Metal Chip Briquetting Machine 120 Mm Automatic Vertical 2
Y83-630 Metal Chip Briquetting Machine 120 Mm Automatic Vertical 3


Y83-630 Metal Chip Briquetting Machine 120 Mm Automatic Vertical 4


Q1:Are you a manufacturer, trading company or a third party?
A:We are a professional manufacturer of large and medium-sized hydraulic machinery and equipment in China, and also one of the production bases of metal hydraulic baler and metal shearing machine.


Q2:What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog.


Q3: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .


Q4:As the shipping period will take long time, how can you make sure the machine won’t be broken?
A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.


Q5:How to Install ?
A:a.For vertical baler machines, no need to install. This kind of machine is exported by complete unit.
b.For horizontal machines, we can provide installation service. Installation and training are free, but our technician’s charges
of freight tickets, hotels and food etc are on your account.
