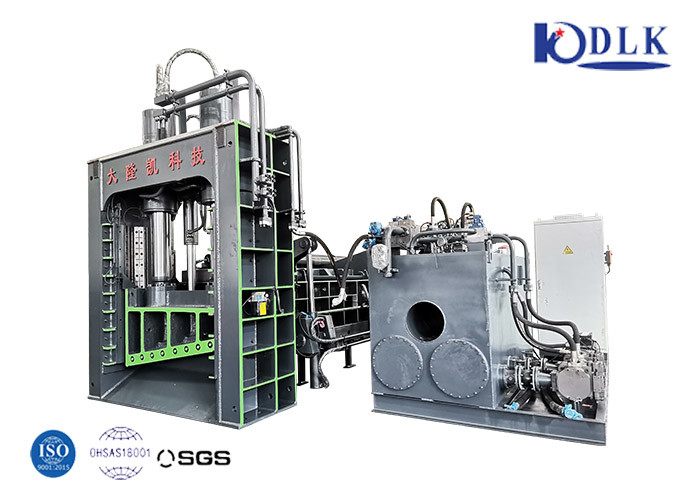

Multifunction Hydraulic Metal Scrap Gantry Shear Cutting Machine For Metal Recycling Plant

Place of Origin Jiangsu P.R. China
Brand Name DLK
Certification ISO9001
Model Number Q91Y-500
Minimum Order Quantity 1 set
Price USD:99880 dollars per set
Packaging Details Seaworthy packing
Delivery Time 80-90 days
Payment Terms 30% T/T In Advance, L/C
Supply Ability 2 sets /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Metal Cutting Machine Power Type Hydraulic
Function Waste Metal Shearing Application Scrap Metal Recycling
Hydraulic System Pressure ≤27MPa Press Box Size 6000*1500*700 Mm
Applicable Industries Manufacturing Plant, Steel Mill And Metal Recycling Yard Cutting Material Heavy Metal Scrap
Control System PLC+Remote Color Green & Gray
High Light

Multifunction Gantry Shear

,

Scrap Gantry Shear Cutting Machine

,

Hydraulic Metal Scrap Gantry Shear

Leave a Message
Product Description

Multifunction Hydraulic Metal Scrap Shearing Cutting Machine For Metal Recycling Plant

Product Description

The 500-ton gantry shearing machine can be used to cut various shapes of scrap metal scrap steel, scrap I-beam, scrap pipes, scrap tires, etc. We have mass production of this type of gantry shear, which is a hydraulic scrap metal shearing machine with a relatively large sales volume.



Technical Parameters

NO.   Remark
1 Shear cylinder Model YG340/240 Qty. 2pc 500 Ton
Normal force 2500KN*2 Stroke 880 mm
2 Pressure material cylinder Model YG160/100 Qty. 2pc 100 Ton
Normal force 500KN*2 Stroke 750 mm
3 Pushing cylinder Model YG140/90 Qty. 2pc 36 Ton
Normal force 180KN*2 Stroke 5980 mm
4 Door cover cylinder Model YG125/80 Qty. 3pc 45 Ton
Normal force 150KN*3 Stroke 980 mm
5 Hydraulic system working pressure ≤27MPa
6 Blade length 1600 mm
7 Press box size 6000*1500*700 mm
8 Power Specifications 380 V / 50Hz



Features of the shear

1. Hydraulic drive, reliable safety performance and convenient operation.

2. Working blade length: 800mm, 1000mm, 1200mm, 1500mm; the shear force is 6 grades from 200t to 1250t,suitable for users with different scales and requirements.

3. Foot screws are not required for installation, and diesel engine can be used as power in places without power supply.

Multifunction Hydraulic Metal Scrap Gantry Shear Cutting Machine For Metal Recycling Plant 0

Applications

Applicable materials for heavy gantry shearing machine: metal, iron sheet, cast iron, thin iron, thin iron sheet, light and thin material, steel, color steel tile, scrap steel, scrap iron, aluminum alloy, channel steel, angle steel, angle iron, copper plate, metal sheet, Aluminum profile, scrap steel bar, aluminum plate, iron plate, steel plate, round steel, scrap metal.



Multifunction Hydraulic Metal Scrap Gantry Shear Cutting Machine For Metal Recycling Plant 1

Service



1. Professional and patient consulting service to help you find the suitable solution.
2. Further negotiation about the technical details, machine configuration, price basis, payment term and delivery time.
3. Free training in our plant during machine inspection.
4. For technical support, we can help you online by email and phone, also we can send technicians to your site if necessary.
5. If you need to visit the factory, we will arrange for personnel to pick up the airport.



Factory
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.

In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.

Our DLK brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.

Multifunction Hydraulic Metal Scrap Gantry Shear Cutting Machine For Metal Recycling Plant 2

Workshop

Multifunction Hydraulic Metal Scrap Gantry Shear Cutting Machine For Metal Recycling Plant 3

FAQ
1,Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.

2,Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.

3,Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing

4,Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.29, Panlongshan Road, Jiangyin City, Jiangsu Province, China.

5,Q: Can we order one set machine?
A:Yes, you can.
