Material Handler Grabber Excavator 21 Ton For Steel Plant

Place of Origin China
Brand Name DLK
Certification CE
Model Number GE210H
Minimum Order Quantity One Set
Price USD:158000 dollars per set
Packaging Details Plastic Film
Delivery Time 20 days
Payment Terms L/C, T/T
Supply Ability 15 sets per month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Hydraulic Steel Grabbing Machine Full length 9586 Mm
Overall width 2800 Mm Total height 2891 Mm
Fuel tank 440 L Hydraulic tank 260 L
Application Handling Scrap Steel Color Customized
Warranty 1 Year OEM YES
High Light

material handler grabber excavator

,

21 ton grabber excavator

,

steel plant grabber excavator

Leave a Message
Product Description

Product Description:



The steel grabbing machine is a kind of grabbing equipment. Its main function is to grab and load various materials such as scrap metal, scrap steel, finished steel, industrial waste, gravel, construction waste, household garbage, etc. It is widely used in scrap Recycling plants, major steel plants, metallurgy, ports, docks, scrap steel processing centers and other industries.



Advantages of the steel grabbing machine



1. Working table controlled , water temperature, oil temperature, current are all in sight.

2. Cabin room working table can open fast and convenient to make maintain machinery quickly .

3. And can near start motor , engine ,battery ,rotary motor, speed reducer, swivel connection , valve , tube accessiblely , can reduce time of mainterance.

4. Famous brand hydraulic components are adopted, of which the operating life is long, the power is driving and the operating speed is fast.

5. Fully hydraulic steering, with two pilot hand levers to operate, which is flexible, portable, efficient and fast.

6. Scuttle with pneumatic spring can provide upward eyeshot and extral ventilation effect..

7. Slidable folding front screen, easy to open and hold at the open position, which ameliorates running conditions efficiently.

8. Famous hydraulic traction motor is adopted, the speed of which can be adjusted with an extensive range.

9. Adjustable vibration damper seat, comfortable, accords with the requirements of ergonomics.

10. Ascendant performance of complete appliance, with extraordinary operation efficiency. With which many kinds of optional components can be matched to meet requirements of different users.



Machine Technicial Specifications:

Category Unit
Engine Model Cummins QSB7-C166
Rated power kW/rpm 124/2050
Maximum torque kN.m/rpm 658/1300
Hydraulic system Work pressure Mpa 34.3
Maximum flow L/min 2*230
Work performance Swing speed rpm 13.2
Walking speed (high, low) km/h 5.2/3.5
Gradeability % 70
Largest traction kN 195
Size Full length mm 9586
Overall width mm 2800
Total height mm 2891
Ground clearance of counterweight mm 1016
Tail length mm 2835
Upper width mm 2745
Cab height mm 2960
Tail radius of gyration mm 2835
Walking device Track length mm 4165
Track ground length mm 3370
Gauge mm 2200
Track width mm 600
Ground pressure kgf/c 0.49
Minimum ground clearance mm 470
Fuel tank capacity Fuel tank L 440
Hydraulic tank L 260

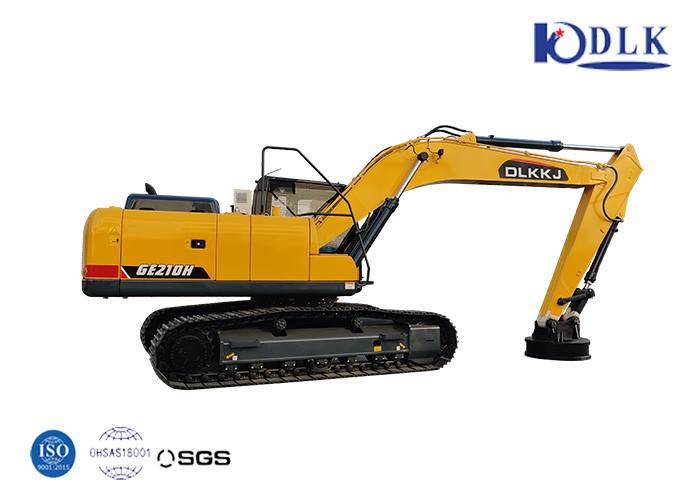

Material Handler Grabber Excavator 21 Ton For Steel Plant 0

Applications:



The steel grabbing machine is a kind of grabbing equipment. Its main function is to grab and load various materials such as scrap metal, scrap steel, finished steel, industrial waste, gravel, construction garbage, and domestic garbage. It is widely used in scrap Recycling plants, major steel plants, metallurgy, ports, docks, scrap steel processing centers and other industries.

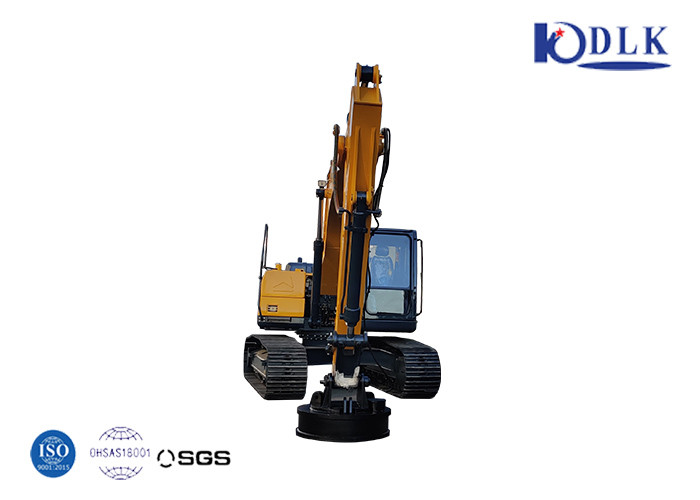

Material Handler Grabber Excavator 21 Ton For Steel Plant 1

Our company:



DLK Hydraulic Machinery has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.



In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.



Our DLK brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.



Our serivce:

  • 24 hours online service.
  • Enquiry will be replied in 2 hours
  • One year quality guarantee and lifelong maintenance.
  • Any problem, you can call us directly.

Material Handler Grabber Excavator 21 Ton For Steel Plant 2

FAQ:


Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.

Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu Province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .

Q3:Are you a factory or trade company?
A:We are manufacturer with own factory for 20 years, export proportion 50~60%.

Q4:How can I trust your company?
A:With 20-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment, .
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.

Q5 :Is your price competitive?
A:Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
