Guillotine Steel Sheet 500 Ton Metal Shearing Equipment / Machine For Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Nmae | Guillotine Shear / (Scrap Metal Shear) | Power Type | Hydraulic |
|---|---|---|---|
| Function | Waste Metal Shear | Application | Cutting Scrap Steel |
| Material | Brass / Copper, ALLOY, Carbon Steel, Aluminum, Stainless Steel, Sheet Metal | Control System | PLC+Remote |
| Color | Gray & Green (Customized) | Main Cutting Force | 500 Ton |
| Press Box Size | 6000*1500*700 Mm | Warranty | 1 Year |
| High Light | guillotine metal shearing equipment,500 ton metal shearing equipment,500 ton guillotine shear for metal |
||
Product Description
Product Description
Q91Y series heavy metal scrap cutting shear is applicable in steel plants, precision casting industry & non-ferrous smelting industry to cut all kinds of scrap steel (steel, copper, aluminum, stainless steel, scrap car shell ,etc.).

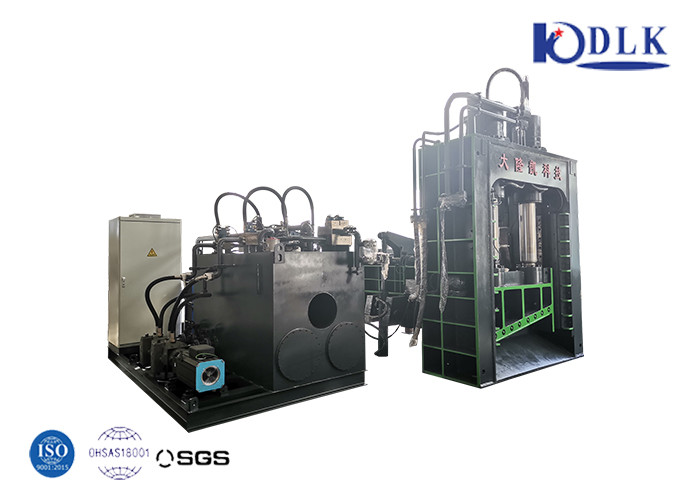

The gantry shear is composed of a frame, a hydraulic cylinder, a hydraulic power system and an electrical system. In the working principle, it passes through the automatic feeding bin, that is, after the material is grabbed to the loading bin, the scrap is automatically sent to the knife edge by the conveyor belt.The feeding speed can be adjusted by the speed regulating motor.
Feature of the gantry shear
1. The machine is driven by hydraulic pressure to cut sections and so on.
2. With integrated hydraulic and electric control, single and continuous action conversion can be realized, simple and convenient to use, and can be stopped and run at any working position.
3. It has a wide range of applications. It can be used as processing equipment for metal recovery processing units and as charge for foundry workshops of factories.
Technical parameters:
| Model | Max.Cutting Force(ton) | Press Box Size(mm) | Blade Length(mm) |
Cutting Frequency (times/min) |
Power (KW) |
| Q91Y-400 | 400 | 6000*1300*500 | 1400 | 2-4 | 90 |
| Q91Y-500 | 500 | 6000*1500*700 | 1600 | 2-4 | 110 |
| Q91Y-630 | 630 | 8000*1700*1200 | 1800 | 2-4 | 150 |
| Q91Y-800 | 800 | 8000*1900*1200 | 2000 | 2-4 | 225 |
| Q91Y-1000 | 1000 | 8000*2000*1200 | 2500/2100 | 2-4 | 270 |
| Q91Y-1250 | 1250 | 8000*2400*1200 | 2500 | 2-4 | 300 |
The parameters in the table are for reference only.
All products support customization.
Application
Heavy-duty hydraulic shear is suitable for metal recycling processing plant, scrap car dismantling yard and recycling industry to cut off various metal structures such as color steel tile, bicycle frame, motorcycle frame, scrap car iron sheet, hydraulic oil barrel, refrigerator iron sheet, TV shell, angle steel, channel steel, small pressing block, etc. in cold state, and process them into qualified furnace materials.
Factory
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our DLK brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Certification
FAQ
1,Q:Can I add my logo on the machines?
A: Yes,OEM and ODM are available for us.
But you should send us the Trademark authorization letter.
2,Q:How can i get the after-service?
A: We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
3,Q:Do you have inspection procedures for machines?
A:100% self-inspection before packing
4,Q:Can I have a visit to your factory before the order?
A:Sure,welcome to visit our factory.
Here is our factory address:No.29, Panlongshan Road, Jiangyin City, Jiangsu Province, China.
5,Q: Can we order one set machine?
A:Yes, you can.
