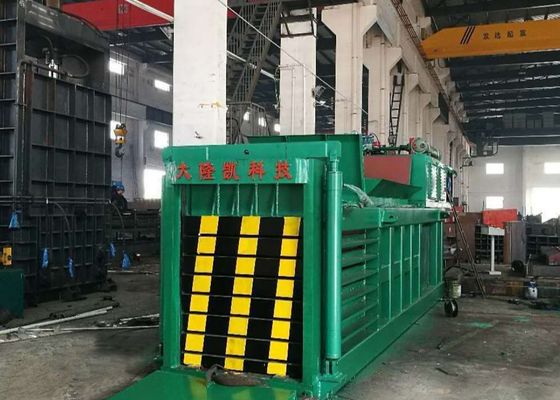

Wastepaper And Pet Bottle 52.5KW Horizontal Press Machine
|Press Box Size||1900*1120*1300mm||Feed Hopper Size||2200*1120*1300mm|
|Capacity||6-12 Bales Per Hour||Automatic Grade||Automatic|
|Driven Type||Hydraulic||Application||Paper,PET Bottle,Plastic Film,Straw|
wastepaper horizontal press machine,
52.5KW Horizontal Press Machine
HPM SERIES HORIZONTAL PAPER/PLASTIC BALER MACHINE
HPM Series Machine used for packing materials such as waste paper (cardboard box, newspaper,paper), waste plastic (PET bottle, plastic film, turnover box), straw and some similar material.
1) One year guarantee and lifelong maintenance.
2) Spare parts: supply one set of spare parts for free, tool box, operation book.
3) Any problem, you can call us directly.
4) Global Service granteed in 3 Days
5) Extra Charges if you need service person stay locally
1.Horizontal structure; it can match the conveyor belt or manual-feeding.
2.Button operation, PLC control, safe and reliable.
1.PLC control, man-machine interface (touch screen) the window type monitoring, simultaneous actions cooperate error warning indicator diagram, can be set bag piece length.
2.Three direction floating on the left, right, reducing design, conducive to automatically assigned all pressure, can be widely used in packaging of different materials.
3.Automatic strapping, improves the packaging speed.
4.Pushing connection between cylinder and pushing head adopts spherical structure, good reliability, seal oil service life is long.
5.Feeding mouth bring distributed shear knife, cutting efficiency is high.
6.Low noise hydraulic circuit design, highly efficient low failure.
7.The installation is convenient, without a foundation.
Machine Technical Parameter:
|Press Box Size(mm)||1900*1120*1300|
|Feed Port Size(mm)||2200*1120*1300|
|Press Range||Waste paper,Straw,Plastic,Fiberfrax|
|Capacity||6-12 Bales per hour|
