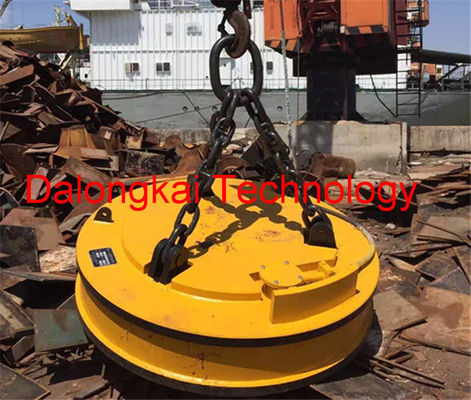

Middle Size Electric Lifting Magnets For Magnetic Steel Plate Lifters
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Power | 15.6 KW | Model | MW5 Series |
|---|---|---|---|
| Environment | Scrap Yard | Quality | Grade A |
| Lifting Capacity | 900-1100 Kg | Machine Weght | 2700 Kg |
| Highlight | rare earth magnets,electro lifting magnets |
||
Product Description
| No. | Model | Power(KW) | Lifting Capacity ( scrap steel volume≥1.2T/M3) | machine weight(KG) |
| 1 | MW5-70L/1 | 3.2 | 100-120 | 500 |
| 2 | MW5-90L/1 | 5.6 | 200-250 | 7800 |
| 3 | MW5-110L/1 | 7.0 | 400-450 | 1250 |
| 4 | MW5-130L/1 | 11.9 | 600-700 | 2050 |
| 5 | MW5-150L/1 | 15.6 | 900-1100 | 2700 |
| 6 | MW5-165L/1 | 19.8 | 1100-1350 | 3400 |
| 7 | MW5-180L/1 | 22.4 | 1350-1600 | 4100 |
| 8 | MW5-185L/1 | 24.7 | 1500-1800 | 4500 |
| 9 | MW5-210L/1 | 27.3 | 1600-2200 | 6800 |
| 10 | MW5-240L/1 | 32.6 | 2200-2850 | 9000 |
Electromagnet are ensure of reliable work under the following conditions:
a,Not more than 2500 meters above sea level
b,Ambient air temperature is not more than 40 degrees Celsius, the minimum temperature is not less than -20
c,Ambient air humidity is not more than 90% (average temperature is 25 degrees Celsius)
d,Non explosive hazardous and non corrosive gases in the environment
e,Both indoor and outdoor use
Structure
Magnetic circuit is made of shell, iron core, out magnetic pole, inner magnetic pole and absorbed. The magnetic circuit parts are made of high quality steel and cast steel with low carbon content.Double glass fiber enameled aluminum or aluminum oxide film insulation with winding coil . Insulation material with H grade heat resistance grade .Its use of high wear resistance of high manganese steel. The inner and outer rings and the inner and outer magnetic pole welding seal cast epoxy resin to increase the waterproof, shock proof and insulation performance of the coil
