Big Size Hoisting Electric Lifting Magnets For Different Kinds Of Scrap Metal

Place of Origin Made In China
Brand Name DLK
Model Number MW5-130L/1
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details wooden case
Delivery Time 30 days
Payment Terms T/T, L/C
Supply Ability 50 sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power 11.9 KW Model MW5 Series
Environment Scrap Yard Quality Grade A
Lifting Capacity 600-700 Kg Machine Weght 2050 Kg
High Light

rare earth magnets

,

electro lifting magnets

Leave a Message
Product Description

big size hoisting electromagnet

No. Model Power(KW) Lifting Capacity ( scrap steel volume≥1.2T/M3) machine weight(KG)
1 MW5-70L/1 3.2 100-120 500
2 MW5-90L/1 5.6 200-250 7800
3 MW5-110L/1 7.0 400-450 1250
4 MW5-130L/1 11.9 600-700 2050
5 MW5-150L/1 15.6 900-1100 2700
6 MW5-165L/1 19.8 1100-1350 3400
7 MW5-180L/1 22.4 1350-1600 4100
8 MW5-185L/1 24.7 1500-1800 4500
9 MW5-210L/1 27.3 1600-2200 6800
10 MW5-240L/1 32.6 2200-2850 9000





 Electromagnet are ensure of reliable work under the following conditions:

a,Not more than 2500 meters above sea level

b,Ambient air temperature is not more than 40 degrees Celsius, the minimum temperature is not less than -20

c,Non explosive hazardous and non corrosive gases in the environment

d,Ambient air humidity is not more than 90% (average temperature is 25 degrees Celsius)

e,Both indoor and outdoor use







Structure

Magnetic circuit is made of shell, iron core, out magnetic pole, inner magnetic pole and absorbed. The magnetic circuit parts are made of high quality steel and cast steel with low carbon content.Double glass fiber enameled aluminum or aluminum oxide film insulation with winding coil . Insulation material with H grade heat resistance grade .Its use of high wear resistance of high manganese steel. The inner and outer rings and the inner and outer magnetic pole welding seal cast epoxy resin to increase the waterproof, shock proof and insulation performance of the coil.It has safe and reliable use.

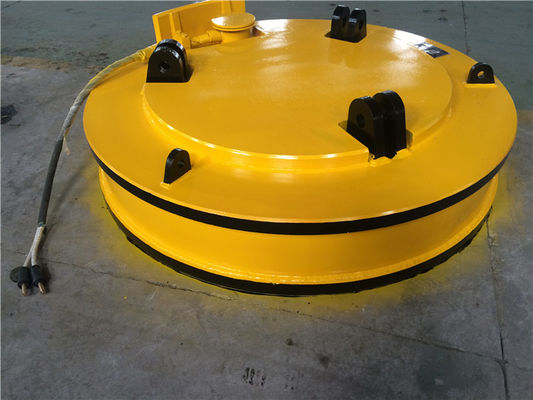

Big Size Hoisting Electric Lifting Magnets For Different Kinds Of Scrap Metal 0
