Double Cylinder Metal Briquetting Press High Production High Density

Place of Origin Jiangsu P.R. China
Brand Name DLK
Certification ISO9001
Model Number MN-SW-1000
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Seaworthy packing
Delivery Time 90 days/set
Payment Terms 30% T/T In Advance, L /C
Supply Ability 1 set /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Density 4.5-6 Ton Per Cubic Meter Colour Different Colours
Production 8-25 Tons Per Hour
High Light

metal briquetting machine

,

hydraulic briquette press machine

Leave a Message
Product Description

Manniu MN-SW-1000 Double Cylinder Briquetting Press Machine. This machine is mainly used to press crushing materials, raw iron filings, steel cuttings,etc, making convenient for recycling and refining.

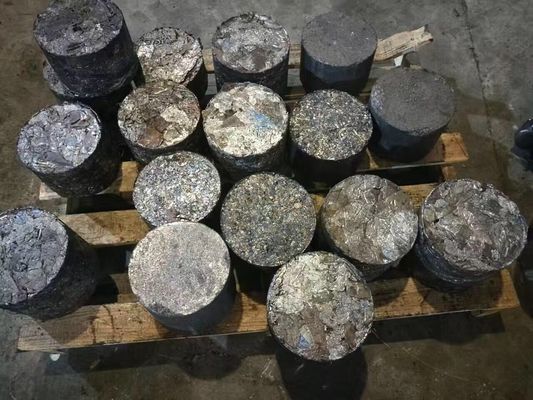

The waste material is transported to the feed port through a conveyor belt, then metal block can be formed by double cylinder extrusion.The metal block’s density is about 4.5~6t/m³and the capacity is about 8~25t/h.







Number Specification Model or Number
1 Oil Pump Nominal Pressure 35Mpa
2 System Nominal Pressure 28Mpa
3 Double Main Cylinder Inner Diameter Φ680-φ680
4 Motor 45KW-4 ×2+ 18.5KW
5 Oil Pump 227/125×2+40
6 Work Efficiency Loose material≈6 blocks/min(Tight material≈9 block/min
7 Cavity Diameter Φ200-300mm
8 Cavity Height 270mm
9 Metal Block diameter Φ300mm
10 Metal Block Height ≈185mm
11 Metal Block Weight ≈70KG
12 Metal Block Density (Steel cuttings,crushing material)≈4.5~6.0t/m³
13 Production Per Hour ≈8-25t
14 Control System PLC Control+ Text Display integrated disassemble valve block
15 Cooling Form New Cooler
16 Operating Form Manual Operation/ Self-motion
Notes: This machine needs only one person to operate independently. Oil residue is 1.8%-3%.
