Hydraulic Briquette Machine Stable Operation For Compress Metal Sawdust

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCyl. Force | 490 Ton | Rated Power | 30 /40 KW |
---|---|---|---|
Rated Displacement | 80 Ml /r | Operation System | PLC |
Machine Size | 1450*860*2970 Mm | Color | Customized |
Power Spec | 3PH, 50 /60 HZ | Production Rate | 1300 - 1800 Kg /hr |
Quality | Grade A | ||
Highlight | metal briquetting machine,hydraulic briquette press machine |

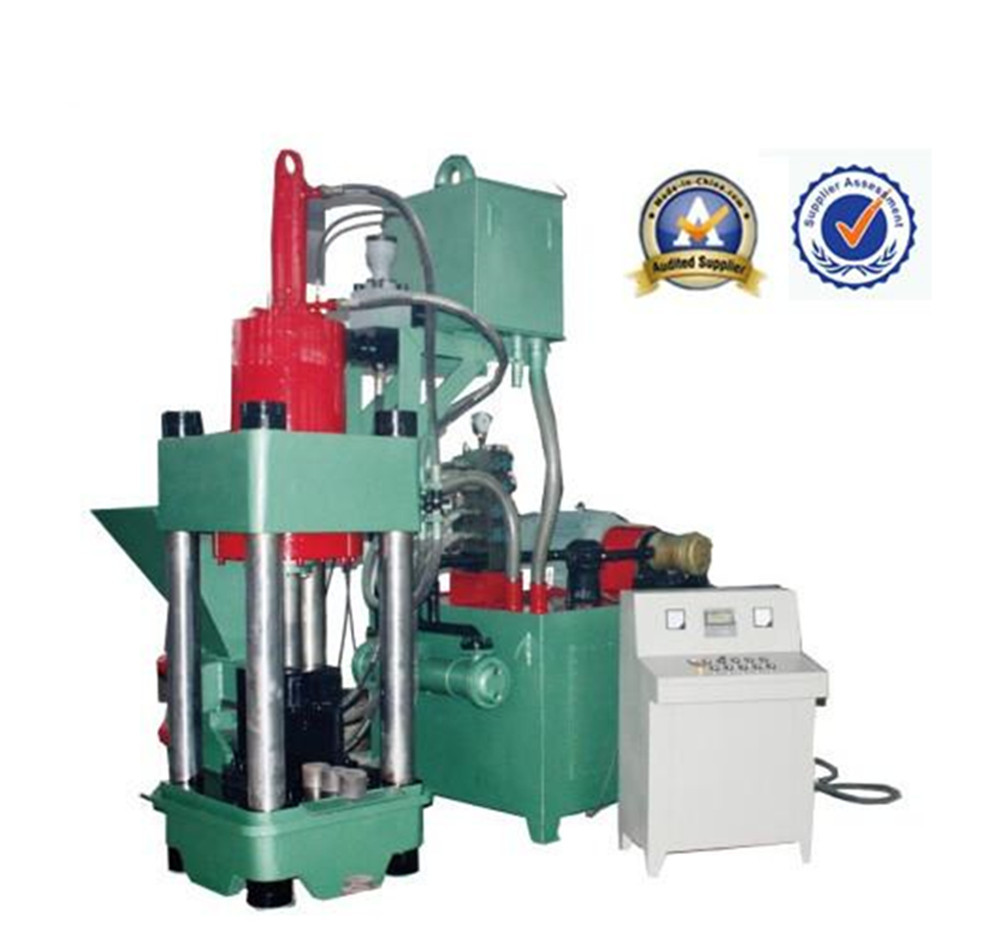

Hydraulic Drive Briquette Machine Stable Operation For Compress Metal Sawdust
Futures:
1. Hydraulic drive, stable operation, vibration-free, safety and reliability.
2. Adopts PLC automatic control and the users can select manual or automatic operation.
3. Requires simple equipment foundation.
Metal Briquetting Press
1. Such series are mainly used to extrude steel cutting, cast iron filling, copper scrap and aluminumscrap into high density cylinder bulk, in order to achieve convenient reclamation and easy refining, especially the extruded casting iron filling may substitute.
2. Hydraulic briquetting press is used for making lime powder, ferrosilicon powder, chromium powder, refractory materials and other different fines which contain low content water or no water. This briquetting press type is widely used in mining and metallurgy industry.
3. Y83 series of briquetting presses are applied to compress metal sawdust (steel, cast iron, aluminum & copper) into high density briquettes to reduce burning loss during smelting. Cast iron briquettes, can substitute pig iron as raw material.
Note
We will offer you price referring to your detail request, so please kindly inform us of the material, size, moisture content, capacity per hour, briquettes' size & shape which you prefer. And the special offer will be given.
Technical parameters
Type |
Nominal force(KN) |
Cylinder inner Diameter (mm) |
Briquette size(mm) |
Density (t/m3) |
Briquette weight(kg) |
Productivity (block/min) |
Output in One Shift |
Total Power (kw) |
Weight of machine(kg) |
Remark |
HC83-2500A |
2009 |
320 |
90x(60~80) |
≥5 |
3~3.5 |
5 |
5~8 |
18.5 |
4000 |
double operation |
HC83-2500B |
2009 |
320 |
90x(60~80) |
≥5 |
3~3.5 |
5 |
5~8 |
18.5 |
4200 |
single operation |
HC83-3150 |
2850 |
360 |
(90~100)x(60~100) |
≥5.5 |
3~4 |
6 |
8~12 |
30 |
6650 |
with fully computer automatic operation |
HC83-5000 |
4453 |
450 |
(110~140)x(80~120) |
≥5.5~6 |
4~8 |
4~5 |
12~16 |
30 |
8950 |
with fully computer automatic operation |
Characteristic |
High pressure.
|
Compact structure.
|
|
Easy to install and operate.
|
|
Long working Life.
|
|
Main Machine Size (L×W×H)
|
1925×1300×4020 mm |
Press Mould Size (Dia×H)
|
Φ150×300 / Φ180×300 mm |
Pressure on Briquet
|
283 / 196 MPa |
Briquet Size
|
Φ150×(70-100) / Φ180×(70-100) mm |
Shipping Weight
|
Approx. 15 tons |
Standard briquettes size
|
38*25*13mm or adjustable |
Briquetting method
|
Dry briquetting through rollers. |
