High Density Hydraulic Baling Press Machine Manual Valve Easy Operation

Place of Origin Made in China
Brand Name DLK
Model Number Yr81F 250
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Nude packing
Delivery Time 50 days
Payment Terms L/C, T/T
Supply Ability 10 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Automatic Grade Semi-Automatically Cyl.Force(ton) 63-400 Tons
Application Baling Scrap Metal Loading (Standard Containers) 1*20'OT
Shipping Weight Approx. 18.2 Tons Production Rate (Steel ) 3.5-6.0 Tons/hr
Quality Grade A
High Light

hydraulic baling machine


hydraulic scrap baling press

Leave a Message
Product Description

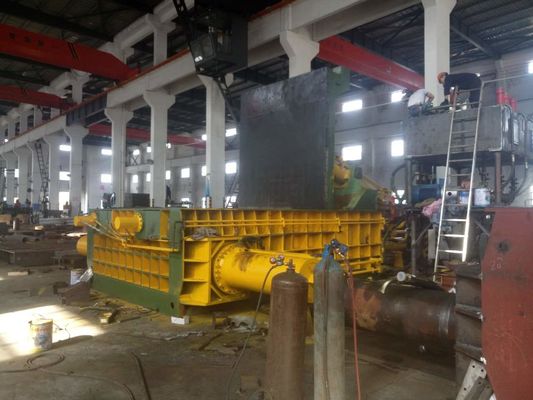

Manual Valve Operation  Hydraulic Baling Press YR81F - 250 With Hydraulic Drive





Y81 series of hydraulic metal balers are applicable in  steel plants, recycling companies, ferrous&non-ferrous smelting industry to press metal scraps(steel, copper, aluminum, stainless steel, discarded automobiles)into acceptable furnace charges(shape: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.


The package is discharged from the front and secondary compressionis applied. The operation efficiency is high and lump lengths are identical and uniform .The hydraulic systemapplies an integrated valve block and the product is stable and reliable in technical performance



1. Our baler machine under 250 ton is integral structure. Hydraulic station connects with the host machine together. So it doesn’t need to install. One machine puts in one 20" container. And it saves ship cost.
2. We use good quality seals, so no oil leak.

3. Our company use high-strength wear-resistant plate import from America, the plates are available 15 years, do not need to change, the price is as 5 times as the common, common plate life is three years.
4. Inner blades, water cooler, protective net, hosepipe, flange, big pressure head, relief valve, oil temperature gauge.




Technical parameters


Power system

Rated Speed

Rated Power

Power Spec.

Lid cyl. Force

Side Door

cyl. Force

Main Pressure cyl. Force

Motor ,2 sets

1970 rpm

22 kw

3ph,50/60 HZ

95 /118Ton










Bale Discharge Cyl. Force

Hydraulic System Pressure

Idle Cycle


Hydraulic System

Rated Displacement

Operating  System


Max. Operating



10 ton

25 / 31mpa

APPROX. 100 Sec

Pump, 2 ets

160 mr/r

 Manual valve operation

31. 5 Mpa








Standard Operation


Optional  Configuration

A3 Steel Liners , Surface heat Treatment

NOK (Janpan) seal packing for cylinders
Oil Heate


Cutting Blades and teeth(2 sides)

#45 Steel Liners for WHOLE pressbox

Diesel / Diesel

Generator for power
