Forward out Hydraulic Baling Press 380V 4 - 40 Tons Per Shift Available

Place of Origin Made in China
Brand Name DLK
Model Number YR81Q-200
Minimum Order Quantity 1
Price Negotiation
Packaging Details nude packing
Delivery Time 40 days
Payment Terms L/C, T/T
Supply Ability 10 sets/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Bale Weight(kg) 100-150kg Bale Size(W*H) 750*350 Mm
Driven Type Hydraulic Main Machine Size 5500*2000*2750 Mm
Production Rate (steel) 2.2-2.0 Ton/hr Shipping Weight Approx. 9.5 Tons
Quality Grade A
High Light

hydraulic baling machine


hydraulic scrap baling press

Leave a Message
Product Description

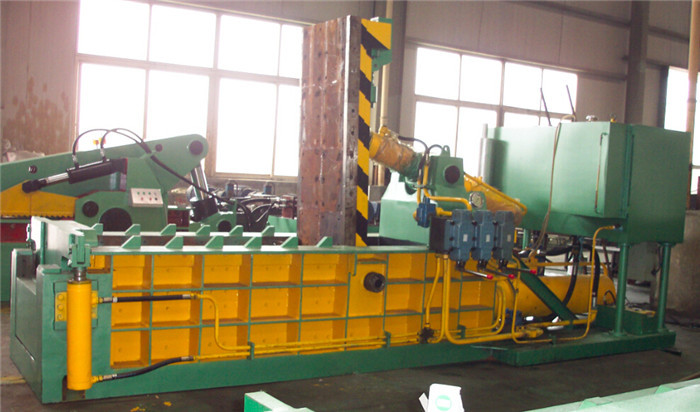

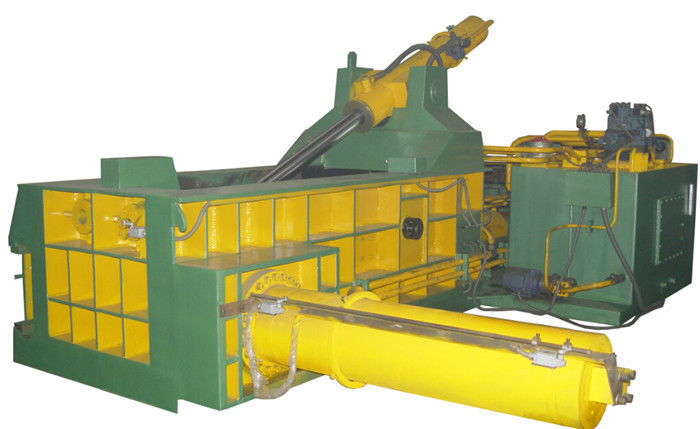

YR81Q-200 Forward-out Baler , 380V Hydraulic Baling Press  4 - 40 Tons Per Shift






1. Hydraulic driver for all machine types, manual valve control or PLC control.

2. No footing bolts needed in installation: diesel engine can be equipped for power.

3. Bale---discharging: turn-out, push-out, forward---out or manual discharging.

4. Baling force 10 grades from 63 to 400tons, productivity from 4 to 40 tons per shift(8hours).

5. Press box size, bale size &bale shape can be customized.





Technical parameters


Power system

Rated Speed

Rated Power

Power Spec.

Lid cyl. Force

Front Door

cyl. Force

Main Pressure cyl. Force


1480 rpm

37 kw

3ph,50/60 HZ

50/56 Ton

2*24 /2*27Ton










Hydraulic System Pressure

Idle Cycle


Hydraulic System

Rated Displacement

Operating  System


Max. Operating




25/ 28mpa

APPROX. 110 Sec


160 mr/r

 Manual valve operation

31. 5 Mpa








Standard Operation


Optional  Configuration

A3 Steel Liners , Surface heat Treatment

NOK (Janpan) seal packing for cylinders

Oil Heater

Cutting Blades and teeth(2 sides)

#45 Steel Liners for WHOLE pressbox

Diesel / Diesel

Generator for power


Company Profile


We, Jiangsu Dalongkai Technology Co., Ltd, provide both standard and customized design in large range of different machines. They are widely applied in industries of metal smelting, fiber, textile, paper-making, waste recycle, automobile, metal processing and so on.Our trade company not only promotes our machinery, we also export different kinds of products by our professional sales team. We have made significant achievements by our trade company. We will keep researching and developing the products to meet the client’s need. And we will make our efforts to achieve our commission: better recycle, better environment, better future, better life.





Y81 series metal hydraulic baler is capable of extruding various metal leftover materials, steel parting, waste copper, aluminum, copper, stainless steel and scraped car material into qualified charging such as square column, cylinder, octagon body and other sharps, in a bid to reduce transportation &refining costs, and increase transportation speed.  It is unnecessary to fix foot screws and a diesel engine can be used in case of power supply unavailability.The extrusion force ranges from 63t to 400t, totaling10 grades for customers’ selection,and productivity being from 4t/shift to 40t / shift.The size of the compression chamber and the form and size of the bale can be designed and customized according to the requirements of the customers.
