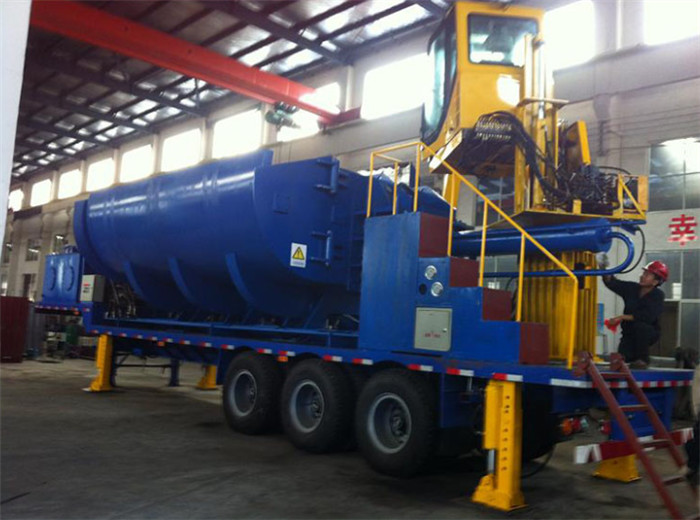

Automatic Portable Baler 21.5mpa 260hp / Scrap Baling Press Machine
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Diesel Power | 220HP | Automatic Grade | Automatic |
|---|---|---|---|
| Hydraulic System Working Pressure | 25MPa | Condition | New |
| Control System | PLC Control | Cooler | Oil-steam Heat Exchange |
| Quality | Grade A | ||
| High Light | hydraulic baling press,hydraulic bale press machine |
||
Product Description
Automatic Portable Baler , 21.5Mpa Baling Machine For Compressing Scrap Metal
Applications
Mobile working, diesel engine driven, no power needed, which are used for scrap; Scrap cars; other metal structures and non-ferrous metals(stainless steel, aluminum alloy, steel,etc).of compression baling.
Cheap price mobile scrap metal baler are applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Mobile Scrap Car Baler are applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon), so as to reduce cost of transportation, to increase speed of furnace charging.
Technical specification
|
1 |
Press box size (L*W*H) |
5000*2000*1200mm |
|
|
2 |
Bale size (W*H) |
800*700mm |
|
|
3 |
Hydraulic system working pressure |
25MPa |
|
|
4 |
Total power |
260HP |
Cummins |
|
5 |
Overall dimension |
11000*3000*4000 (side wings open) |
L*W*H |
|
11000*2300*4000mm (side wings close) |
L*W*H |
||
|
7 |
Cover area |
15000*4000mm |
L*W |
|
8 |
Operating system |
Manual |
Jiangyin Dehong |
|
9 |
Cooler |
Oil-steam heat exchange |
Jinrong Cooler |
|
No |
CB-5000 Technical specification |
Remark |
||||||
|
1 |
Main cylinder |
Model |
YG250/160--2210 |
2set |
||||
|
Nominal pressure |
2500KN*2 |
Trip |
2210MM |
|
||||
|
2 |
First class cylinder |
Model |
YG200/140-598 |
3set |
||||
|
Nominal pressure |
800KN |
Trip |
598MM |
|
||||
|
3 |
Second class cylinder |
Model |
YG200/140-598 |
3set |
||||
|
Nominal pressure |
800KN |
Trip |
598MM |
|
||||
|
4 |
Press box size(L×W×H)(MM) |
5000*2430*1600 |
|
|||||
|
5 |
Bale size(L×W×H)(MM) |
(1000)*800*700 |
|
|||||
|
6 |
Working pressure(Mpa) |
21.5 (turn out system6Mpa) |
|
|||||
|
7 |
Bale density(Kg/m3) |
≥2000(Fe) |
|
|||||
|
8 |
Discharge bale out |
Grab machinery |
|
|||||
|
9 |
Power |
Diesel |
260HP |
|||||
|
10 |
Oil pump
|
Model |
Variable double-piston constant power |
Pressure |
31.5Mpa |
|
||
|
Oil flow |
125ml/*2 |
Quantity |
1set |
|
||||
|
Manufacture |
|
|||||||
|
11 |
Control system |
PLC control |
||||||
|
12 |
360 degree rotation grab
|
|||||||
