Compressing Scrap Metal Baler With Manual Operating System PLC Control
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Customized | First Class CylinderNominal Pressure | 1000KN*3 |
|---|---|---|---|
| Working Pressure(Mpa) | 21.5 (turn Out System6Mpa) | Power | 260Hp |
| Voltage | 21.5Mpa, Customized | Condition | New |
| Quality | Grade A | ||
| High Light | hydraulic baling press,mobile scrap metal baler |
||
Product Description

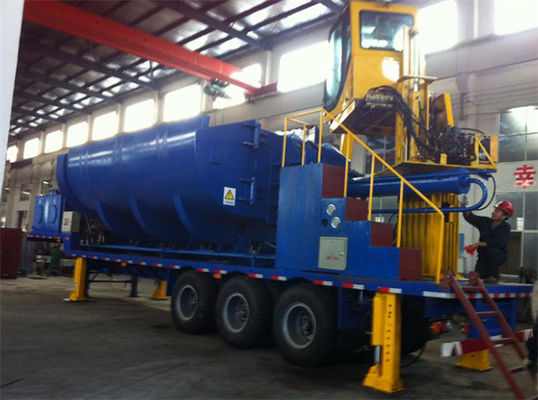

Manual Operating system Portable Baler For Compressing Scrap Metal
Feature
1. The work bin of machine can contain big volume and a big area of scrap materials at one time.
It is especially convenient for large scraps to bale in a short time.
2. Mechanical and electrical integration of liquid control, easy to learn and operation.
3. Hydraulic drive, operation stable and high efficiency.
4. PLC control, high reliability, simple maintenance.
5. Removable style, one equipment can be used more than one yard to reduce the cost of equipment.
Technical specification
|
1 |
Press box size (L*W*H) |
5000*2000*1200mm |
|
|
2 |
Bale size (W*H) |
800*700mm |
|
|
3 |
Hydraulic system working pressure |
25MPa |
|
|
4 |
Total power |
260HP |
Cummins |
|
5 |
Overall dimension |
11000*3000*4000 (side wings open) |
L*W*H |
|
11000*2300*4000mm (side wings close) |
L*W*H |
||
|
7 |
Cover area |
15000*4000mm |
L*W |
|
8 |
Operating system |
Manual |
Jiangyin Dehong |
|
9 |
Cooler |
Oil-steam heat exchange |
Jinrong Coole |
|
No |
CB-6000 Technical specification |
Remark |
|||||
|
1 |
Main cylinder |
Model |
YG320/220--2210 |
1set |
|||
|
Nominal pressure |
3150KN*2 |
Trip |
2210MM |
|
|||
|
2 |
First class cylinder |
Model |
YG220/160-598 |
3set |
|||
|
Nominal pressure |
1000KN*3 |
Trip |
598MM |
|
|||
|
3 |
Second class cylinder |
Model |
YG220/160-598 |
3set |
|||
|
Nominal pressure |
1000KN |
Trip |
598MM |
|
|||
|
4 |
Press box size(L×W×H)(MM) |
5000*2430*1600 |
|
||||
|
6 |
Bale size(L×W×H)(MM) |
(1000)*800*700 |
|
||||
|
7 |
Working pressure(Mpa) |
21.5 (turn out system6Mpa) |
|
||||
|
8 |
Bale density(Kg/m3) |
≥2000(Fe) |
|
||||
|
9 |
Discharge bale out |
Grab machinery |
|
||||
|
10 |
Power |
Diesel |
300HP |
||||
|
11 |
Oil pump
|
Model |
Variable double-piston constant power |
Pressure |
31.5Mpa |
|
|
|
Oil flow |
125ml/*2 |
Quantity |
1set |
|
|||
|
Manufacture |
|
||||||
|
12 |
Control system |
PLC control |
|||||
|
13 |
360 degree rotation grab |
||||||
