PLC Control Hydraulic Metal Shear Cutter Machine With Operation Room
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Voltage | 21.5Mpa, Customized |
|---|---|---|---|
| Power | 2*90KW~6*90kW | Application | Scrap Metal |
| Automatic Grade | Automatic | Capacity | 5-25 T/h |
| Quality | Grade A | ||
| Highlight | scrap car baler,shear cutter machine |
||
Product Description

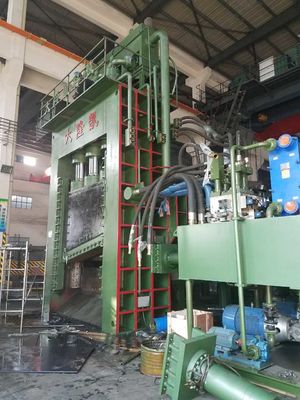

PLC Control Hydraulic Metal Shear For Cutting Machine With Operation Room
Introduction
Q91Y heavy shear are applied in cutting variety if scrap metal.After squeezed two or three times by closing lid and lateral pressure head, scrap metal are compressed into blocks. Eventually being cut or crushed directly to become qualified scraps.The shear machine is mainly used for: compression and cut scrap metal ; cut a variety of bars and section bars ; amount of scrap metal are compressed together into one long stripped bales baling light scrap into blocks; scrap car squeezed into bales.
Specifications
Mainly used for:
1. compression and cut scrap metal
2. cut a variety of bars and section bars
3. baling light scrap into blocks
The machine is able to:
a) Pre-compress and cut scrap
b) Squeeze and cut car bodies
c) Cut bars
d) Packages light scrap
Technical parameters
|
Model |
Max.Cutting Force(ton) |
Press Box Size(mm) |
Blade Length(mm) |
Production Rate(tons) |
Cutting Frequency(times/min) |
Main Motor(KW) |
|
Q91Y-400 |
400 |
5000*2000*1100 |
900 |
8.0-10.0 |
4.5 |
2*90 |
|
Q91Y-800 |
800 |
5000*2000*1400 |
900 |
12.0-25.0 |
4.5 |
4*90 |
|
Q91Y-1000 |
1000 |
6000*2000*1400 |
1000 |
15.0-28.0 |
4.5 |
5*90 |
|
Q91Y-1250 |
1250 |
7000*2000*1400 |
1000 |
18.0-30.0 |
4.5 |
6*90 |
