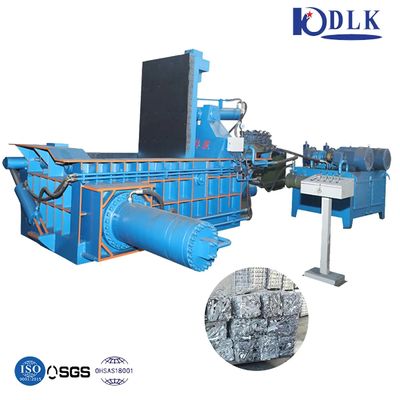

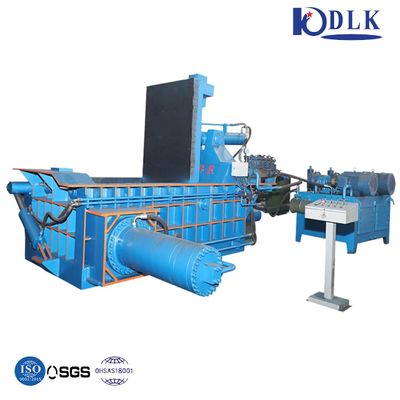

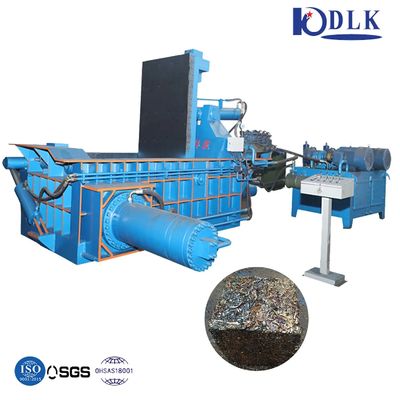

Y81F-200 Hydraulic Metal Baler with 200 Ton Force 1600x1200x800mm Press Box and 400x400mm Bale Size
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Y81F-200 | Type | Scrap Metal Baler |
|---|---|---|---|
| Automation | Semi-Automatic | Main Cyl.Force | 200 Ton |
| Press Box Size | 1600*1200*800(mm) | Bale Size | 400*400(mm) |
| Bale Weight | 120~170(Kg) | Motor | 44(Kw) |
| Power Type | Hydraulic | Nominal Force | 125Tons ~1200Tons |
| Power | 15KW~270KW | Voltage | 21.5Mpa, Customized |
| Automatic Grade | Semi-Automatic | Production Capacity | 5 Sets/Month |
| Driven Type | Hydraulic | ||
| Highlight | 200 Ton Hydraulic Metal Baler,1600x1200x800mm Scrap Baler Machine,400x400mm Metal Baling Press |
||
Product Description
Y81f-200 Hydraulic Metal Steel Shavings Baling Press Machine
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This process reduces transportation costs and increases logistics efficiency by producing uniform shapes like square columns, cylinders, and octagonal blocks.
Key Features
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas with unreliable power supply
- Extrusion force from 63 to 400 tons across 10 models
- Productivity ranging from 4 to 40 tons per shift
- Fully customizable compression chamber and bale dimensions
Applications
Ideal for steel plants, recycling facilities, metal processing industries, and non-ferrous metal refining operations.
Product Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Technical Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set /month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Product Images
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by us. For man-made issues, spare parts are available at cost. Direct phone support is always available.
Q2: Can I visit your factory before ordering?
Welcome to visit our factory at: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, P.R China. We're near Shanghai Pudong Airport and provide airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We're a manufacturer with our own factory operating for 20 years, exporting 50-60% of our production.
Q4: How can I trust your company?
- Third-party assessed with national patents, CE, and ISO certifications
- Factory inspections welcome - conveniently located near Shanghai Pudong airport
- 20 years specialization in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
We guarantee the best factory price based on superior product quality and comprehensive service.
