Y81K-315 Hydraulic Waste Metal Baling Machine with 315 Ton Force 3500x3000x1200mm Press Box and 600-900Kg Bale Weight
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Y81K-315 | Main Cyl.Force | 315 Ton |
|---|---|---|---|
| Press Box Size | 3500*3000*1200(mm) | Bale Size | 500*500(mm) |
| Bale Weight | 600~900(Kg) | Motor Power | 90kw |
| Bale Discharging Mode | Turn Over/Side Push | Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic | Voltage | 21.5Mpa |
| Automatic Grade | Semi-Automatic | Production Capacity | 5 Sets/Month |
| Compression Chamber Size | Customizable | Bale Shape | Square Column, Cylinder, Octagon |
| Power Options | Diesel Engine Available | ||
| Highlight | 315 Ton Hydraulic Waste Metal Baling Machine,3500x3000x1200mm Scrap Baler Machine,600-900Kg Metal Hydraulic Baler |
||
Product Description
Y81K-315 Hydraulic Waste Metal Baling Machine
Product Overview
The Y81 series hydraulic metal baler efficiently processes various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These bales can be formed into square columns, cylinders, octagons, and other shapes to optimize transportation, reduce costs, and improve logistics efficiency.
Key Features
- Ideal for steel plants, recycling centers, and metal refining industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for foot screw fixation
- Diesel engine compatible for areas with unreliable power supply
- Extrusion force ranges from 63 to 400 tons (10 available grades)
- Productivity ranges from 4 to 40 tons per shift
- Customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | 45 days |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Detailed Technical Parameters
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |

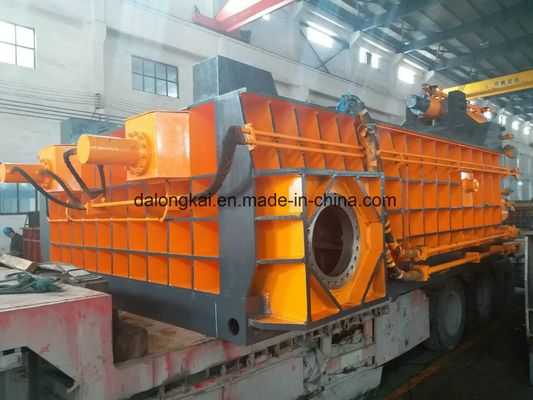

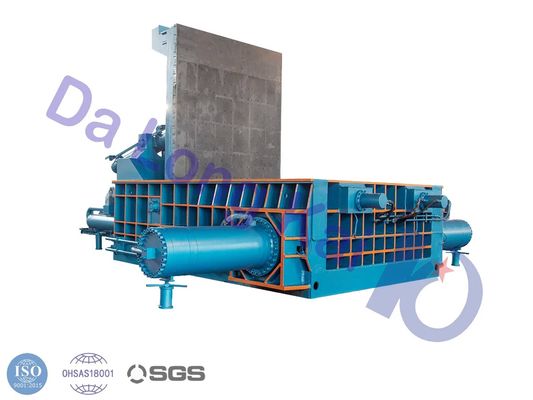

Product Images
Manufacturer Information
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted manufacturer in the waste recycling equipment industry for over a decade. Specializing in scrap metal recycling equipment, our product line includes shear balers, scrap balers, scrap shears, and recycling cranes. We also supply horizontal and vertical balers for processing plastic, paper, cardboard, straw, and textile waste.
Our Dalongkai brand has earned recognition both domestically and internationally. We have successfully passed TUV and ISO9001 Quality Management System certifications and are currently pursuing CE and UL approvals.
Recommended Products
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts for free if problems are caused by us. For user-caused issues, we still provide spare parts at cost. You can contact us directly for any concerns.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, China. We're conveniently located near Shanghai Pudong Airport and can arrange airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
With 20 years of professional experience, we offer expert advice and competitive pricing:
- Certified by third parties with national patents, CE, and ISO standards
- Open for factory inspections anytime (near Shanghai Pudong Airport)
- Specialized in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
We guarantee high-quality machines and offer the best factory prices based on superior products and service.
