Y81K-400 Hydraulic Baler Machine with 3500*3000*1300mm Press Box and 700~1200Kg Bale Weight for Scrap Metal
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Y81K-400 | Main Cyl.Force | 400 Ton |
|---|---|---|---|
| Press Box Size | 3500*3000*1300(mm) | Bale Size | 500*500(mm) |
| Bale Weight | 700~1200(Kg) | Motor Power | 135(Kw) |
| Nominal Force | 125Tons ~1200Tons | Driven Type | Hydraulic |
| Power Range | 15KW~270KW | Voltage | 21.5Mpa |
| Automatic Grade | Semi-Automatic | Compression Chamber Size | Customizable |
| Bale Form | Customizable | Productivity | 4tons/shift To 40tons/shift |
| Discharging Types | Turning Over, Pushing Out, Forwarding Out, Manual Lifting | ||
| Highlight | 3500*3000*1300mm Press Box Hydraulic Baler Machine,700~1200Kg Bale Weight Scrap Baler Machine,Y81K-400 Model Metal Baler Machine |
||
Product Description

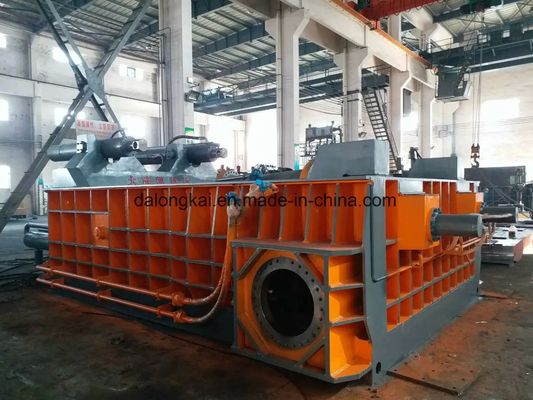

Y81K-400 Hydraulic Baler Machine for Scrap Metal
The Y81 series metal hydraulic baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive materials into compact shapes like square columns, cylinders, and octagons. This process significantly reduces transportation costs while improving handling efficiency.
Key Features
- Processes multiple metal types: steel, copper, aluminum, stainless steel, and automotive scrap
- Creates compact bales in various shapes (square, cylindrical, octagonal)
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No foundation bolts required for installation
- Diesel engine option available for locations without power supply
- Customizable compression chamber and bale dimensions
Applications
Ideal for steel plants, recycling facilities, metal processing industries, and non-ferrous/ferrous metal refining operations.
Product Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Technical Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
