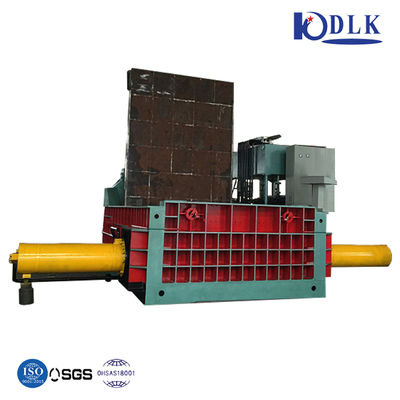

Y81F-250 Hydraulic Scrap Baler with 2000*1750*1000mm Press Box 500*500mm Bale Size and 250~450Kg Bale Weight
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Y81F-250 | Type | Scrap Metal Baler |
|---|---|---|---|
| Automation | Semi-Automatic | Main Cyl.Force | 250 Ton |
| Press Box Size | 2000*1750*1000(mm) | Bale Size | 500*500(mm) |
| Bale Weight | 250~450(Kg) | Motor | 60(Kw) |
| Power Type | Hydraulic | Nominal Force | 125Tons ~1200Tons |
| Power | 15KW~270KW | Voltage | 21.5Mpa, Customized |
| Production Capacity | 5 Sets/Month | Driven Type | Hydraulic |
| Automatic Grade | Semi-Automatic | ||
| Highlight | 2000*1750*1000mm Press Box Hydraulic Scrap Baler,500*500mm Bale Size Metal Baler Machine,250~450Kg Bale Weight Scrap Metal Compactor |
||
Product Description
Y81f-250 Hydraulic Steel Shaving Baler Compress Machine OEM
Product Overview

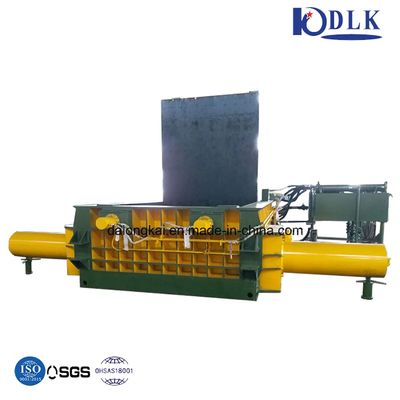

The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. These bales can be formed into square columns, cylinders, octagons, or other shapes to optimize transportation, reduce costs, and improve logistics efficiency.
Key Features
- Ideal for steel plants, recycling centers, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas without power supply
- Extrusion force from 63 to 400 tons (10 available grades)
- Productivity ranging from 4 to 40 tons per shift
- Fully customizable compression chamber and bale dimensions
Technical Specifications
| Attribute | Specification |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa (Customizable) |
| Color | Customizable |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Term | Detail |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Overseas engineer support available |
Model Specifications
| Model | Main Cyl.Force (ton) | Press Box Size (mm) | Bale Size (mm) | Bale Weight (kg) | Motor (KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
