High Pressure Hydraulic Metal Baler with 2500*2000*1200mm Press Box and 600*600mm Bale Size for Scrap Metal Recycling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Y81F-250 | Type | Scrap Metal Baler |
|---|---|---|---|
| Automation | Semi-Automatic | Main Cyl.Force | 250 Ton |
| Press Box Size | 2500*2000*1200(mm) | Bale Size | 600*600(mm) |
| Bale Weight | 300~500(Kg) | Motor Power | 60(Kw) |
| Driven Type | Hydraulic | Voltage | 21.5Mpa |
| Nominal Force | 125Tons ~1200Tons | Power Range | 15KW~270KW |
| Production Capacity | 5 Sets/Month | Extrusion Force | 63 Tons To 400 Tons |
| Productivity | 4tons/shift To 40tons/shift | ||
| Highlight | 2500*2000*1200mm Press Box Hydraulic Metal Baler,600*600mm Bale Size Scrap Metal Baler,300~500kg Bale Weight Metal Baler Machine |
||
Product Description
High Pressure Automatic Control Metal Baler Hydraulic Press Machine
The Y81 series metal hydraulic baler efficiently processes various metal scrap materials including steel, copper, aluminum, stainless steel, and automotive scrap. It compresses waste into compact bales of various shapes (square, cylindrical, octagonal) to optimize transportation, reduce costs, and improve logistics efficiency.
Key Applications
- Steel plants and metal recycling facilities
- Non-ferrous and ferrous metal refining industries
- Metal processing and reclamation operations
Product Features
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No foundation bolts required for installation
- Diesel engine compatible for areas with unstable power supply
- Extrusion force from 63 to 400 tons (10 available grades)
- Productivity range: 4-40 tons per shift
- Customizable compression chamber and bale dimensions
Technical Specifications
| Model | Main Cyl.Force (ton) | Press Box Size (mm) | Bale Size (mm) | Bale Weight (kg) | Motor (KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Product Attributes
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Commercial Terms
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set /month |
| Delivery Time | As your requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers are available to overseas service |

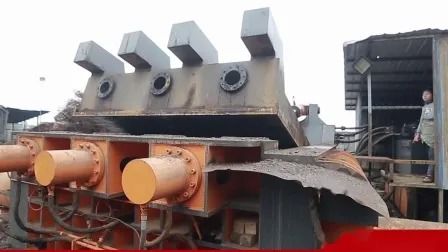

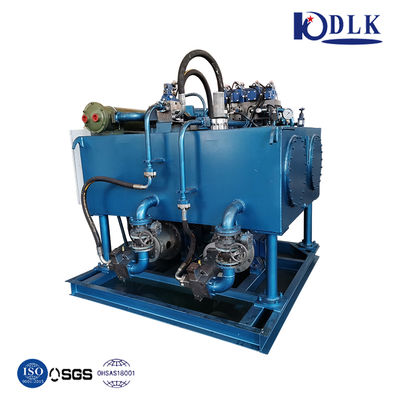

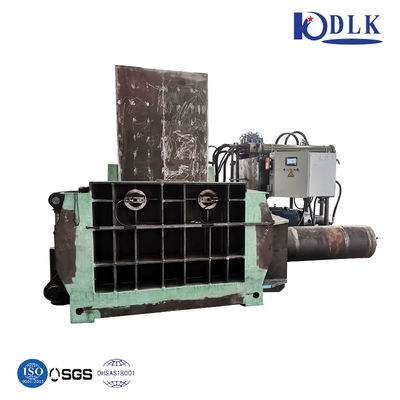

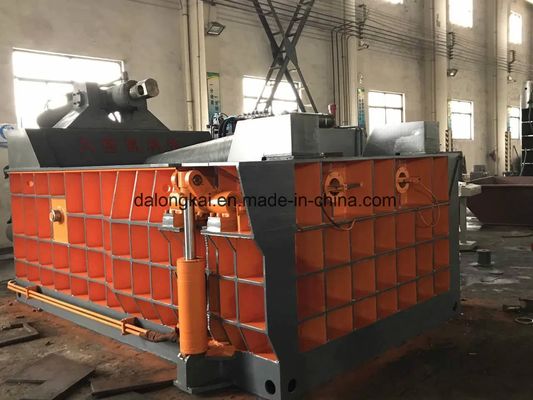

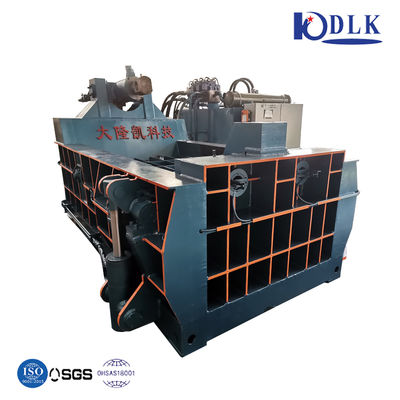

Product Images
