Y81F-160 Hydraulic Press Machine for Scrap Aluminum with 1600*1000*800mm Press Box and 300*300mm Bale Size
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Y81F-160 | Type | Scrap Metal Baler |
|---|---|---|---|
| Automation | Semi-Automatic | Main Cyl.Force | 160 Ton |
| Press Box Size | 1600*1000*800(mm) | Bale Size | 400*400(mm) |
| Bale Weight | 100~150(Kg) | Motor | 22(Kw) |
| Power Type | Hydraulic | Nominal Force | 125Tons ~1200Tons |
| Power | 15KW~270KW | Voltage | 21.5Mpa |
| Extrusion Force | 63 Tons To 400 Tons | Productivity | 4tons/shift To 40tons/shift |
| Driven Type | Hydraulic | ||
| Highlight | 1600*1000*800mm Hydraulic Press Machine,300*300mm Scrap Baler Machine,100~150Kg Metal Baler |
||
Product Description

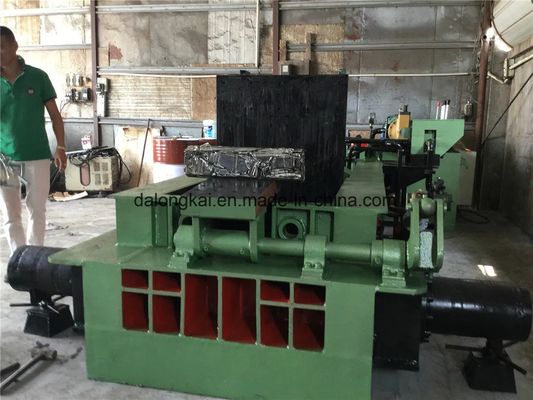

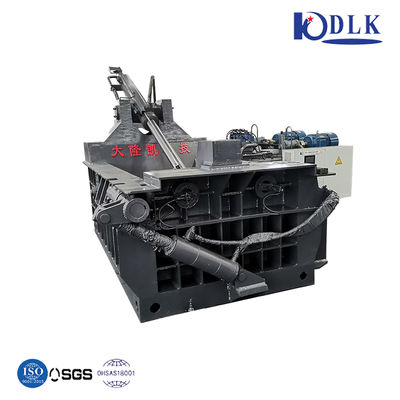

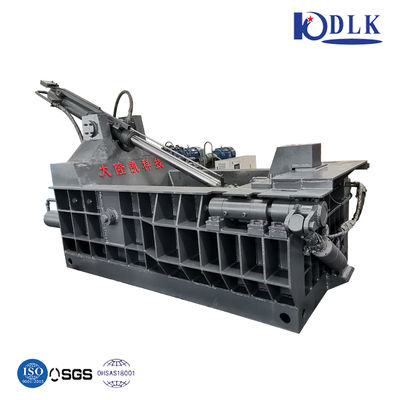

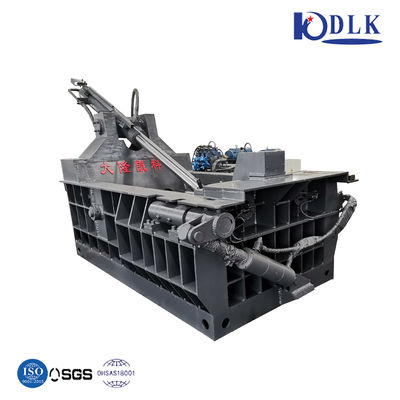

Y81f-160 Hydraulic Press Machine for Scrap Aluminum
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive materials into compact bales. These bales can be formed into square columns, cylinders, octagons, and other shapes to optimize transportation, reduce costs, and improve logistics efficiency.
Key Features
- Ideal for steel plants, recycling facilities, and metal processing industries
- Hydraulic drive system with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No foundation bolts required for installation
- Diesel engine compatible for locations without power supply
- Extrusion force range: 63 to 400 tons (10 available grades)
- Productivity range: 4 to 40 tons per shift
- Fully customizable compression chamber and bale dimensions
Product Specifications
| Attribute | Details |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa, Customized |
| Color | Customized |
| Automatic Grade | Semi-Automatic |
Technical Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81F-315 | 315 | 3500*3000*1300 | 700*700 | 600-1000 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
| Y81F-500 | 500 | 4000*3000*1300 | 700*700 | 900-1500 | 135 |
| Y81K-500 | 500 | 4000*3500*1300 | 700*700 | 900-1600 | 135 |
| Y81F-600 | 600 | 4000*3000*1400 | 700*700 | 1000-1700 | 180 |
| Y81K-600 | 600 | 4000*3000*1300 | 700*700 | 1100-1700 | 180 |
| Y81F-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81K-800 | 800 | 4000*3500*1400 | 700*700 | 1200-1800 | 180 |
| Y81F-1000 | 1000 | 5000*3500*1500 | 700*700 | 1300-1900 | 225 |
| Y81K-1200 | 1200 | 5000*3500*1500 | 700*700 | 1400-2000 | 270 |
Commercial Terms
| Term | Details |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10set /month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |
Product Images
Frequently Asked Questions
Q1: How can I get the after-service?
We provide one year guarantee and lifelong maintenance. We will send you spare parts free of charge if problems are caused by us. For user-caused issues, spare parts are available at cost. Contact us directly for any concerns.
Q2: Can I visit your factory before ordering?
Yes, we welcome factory visits. Our address: 29# Panlongshan Road, Jiangyin city, Jiangsu province, 214429, China. We're conveniently located near Shanghai Pudong Airport and can arrange airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with our own factory operating for 20 years, with 50-60% of production for export.
Q4: How can I trust your company?
With 20 years of professional experience, we offer:
- Third-party assessed national patents and CE, ISO certifications
- Open factory inspections anytime (near Shanghai Pudong airport)
- Specialized expertise in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
We guarantee high-quality machines at the most competitive factory prices, backed by superior products and service.
