Y81F-200 Hydraulic Baling Press with 1800x1400x900mm Press Box and 400x400mm Bale Size for Metal Scrap Recycling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Y81F-200 | Main Cyl.Force | 200 Ton |
|---|---|---|---|
| Press Box Size | 1800*1400*900(mm) | Bale Size | 400*400(mm) |
| Bale Weight | 130~180(Kg) | Motor Power | 44(Kw) |
| Nominal Force | 125Tons ~1200Tons | Driven Type | Hydraulic |
| Voltage | 21.5Mpa | Automatic Grade | Semi-Automatic |
| Production Capacity | 5 Sets/Month | Extrusion Force | 63 Tons To 400 Tons |
| Productivity | 4tons/shift To 40tons/shift | Power Supply | Diesel Engine Option |
| Discharging Types | Turning Over, Pushing Out, Forwarding Out, Manual Lifting | ||
| Highlight | Y81F-200 Hydraulic Baling Press,1800x1400x900mm Scrap Baler Machine,400x400mm Metal Scrap Baler |
||
Product Description
Y81f-200 Steel Shaving Baling Press Machine
Product Overview
The Y81 series hydraulic metal baler efficiently compresses various metal scraps including steel, copper, aluminum, stainless steel, and automotive waste into compact bales. This machine reduces transportation costs, improves logistics efficiency, and is ideal for steel plants, recycling facilities, and metal processing industries.
Key Features
- Hydraulic operation with manual or PLC automatic control options
- Multiple discharge methods: turning over, pushing out, forwarding out, or manual lifting
- No need for fixed foot screws - portable operation
- Diesel engine compatible for areas with unreliable power supply
- Customizable compression chamber and bale dimensions
- Extrusion force from 63 to 400 tons (10 available grades)
- Productivity ranging from 4 to 40 tons per shift
Technical Specifications
| Attribute | Value |
|---|---|
| Product Name | Y81 series hydraulic metal baler |
| Condition | New |
| Application | Scrap metal processing |
| Nominal Force | 125Tons ~1200Tons |
| Driven Type | Hydraulic |
| Power | 15KW~270KW |
| Voltage | 21.5Mpa (Customizable) |
| Color | Customizable |
| Automatic Grade | Semi-Automatic |
Model Specifications
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Size(mm) | Bale Weight(kg) | Motor(KW) |
|---|---|---|---|---|---|
| Y81F-125 | 125 | 1200*700*600 | 300*300 | 50-70 | 15 |
| Y81F-160 | 160 | 1600*1000*800 | 400*400 | 100-150 | 22 |
| Y81F-200 | 200 | 1600*1200*800 | 400*400 | 120-220 | 37 |
| Y81F-250 | 250 | 2000*1750*1200 | 500*500 | 300-500 | 60 |
| Y81F-315 | 315 | 3000*2500*1200 | 600*600 | 400-700 | 90 |
| Y81K-315 | 315 | 4000*3000*1300 | 700*700 | 800-1200 | 135 |
| Y81F-400 | 400 | 3500*3000*1300 | 700*700 | 800-1300 | 135 |
| Y81K-400 | 400 | 4000*3000*1300 | 700*700 | 900-1300 | 135 |
Commercial Terms
| Term | Detail |
|---|---|
| Minimum Order Quantity | 1 Set |
| Price | Negotiable |
| Payment Terms | 30% T/T In Advance |
| Supply Ability | 10 sets/month |
| Delivery Time | As per requirement |
| Packaging Details | Seaworthy packing |
| After-sales Service | Engineers available for overseas service |

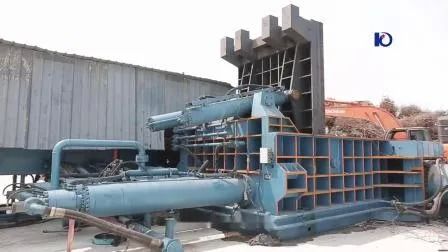

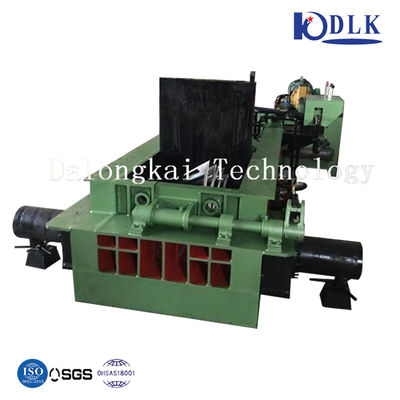

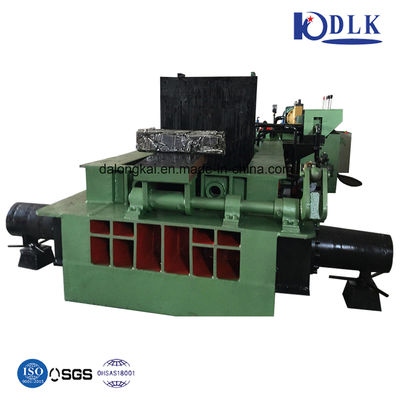

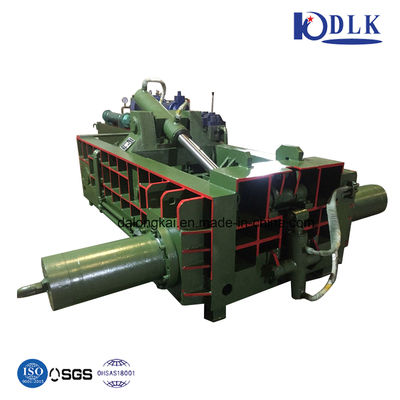

Product Images
Frequently Asked Questions
Q1: How can I get after-sales service?
We provide one year guarantee and lifelong maintenance. Spare parts are provided free if problems are caused by manufacturing defects. For user-caused issues, spare parts are available at cost. Direct technical support is always available.
Q2: Can I visit your factory before ordering?
Visitors are welcome at our factory located at 29# Panlongshan Road, Jiangyin city, Jiangsu province (214429), China. We're conveniently located near Shanghai Pudong Airport and can arrange airport pickup and hotel booking services.
Q3: Are you a factory or trading company?
We are a manufacturer with 20 years of experience, exporting 50-60% of our production.
Q4: How can I trust your company?
Our credentials include:
- Third-party assessed national patents and CE, ISO certifications
- Open factory inspection policy
- 20 years of specialization in hydraulic balers and hydraulic shears
Q5: Is your price competitive?
We offer the best factory price for our high-quality machines, balancing superior product performance with excellent service.
