2000 Ton Hydraulic Scrap Baler Machine For Baling Steel Customized 50HZ
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hydraulic Metal Baler | Power Type | Hydraulic Drive |
|---|---|---|---|
| Voltage | 380V,50HZ, Customized | Production Rate（steel） | About 7-15 Bales/hour |
| Press Box Size | 3500*3000*1500 Mm | Bale Size | 700*700 Mm |
| Power | 307.6 Kw | Application | Baling Scrap Steel |
| After Warranty Service | Video Technical Support, Online Support | Warranty | 12 Months |
| High Light | Customized Scrap Metal Press Baler,2000 Ton Hydraulic Scrap Baler Machine,50HZ Hydraulic Scrap Baler Machine |
||
Product Description
Introduction of metal baler

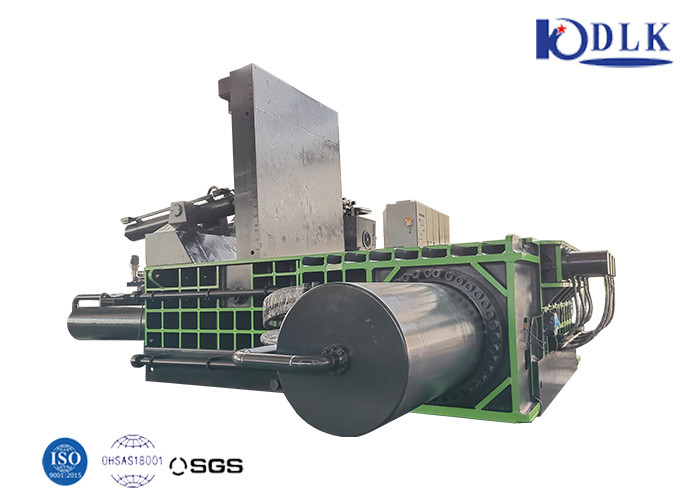

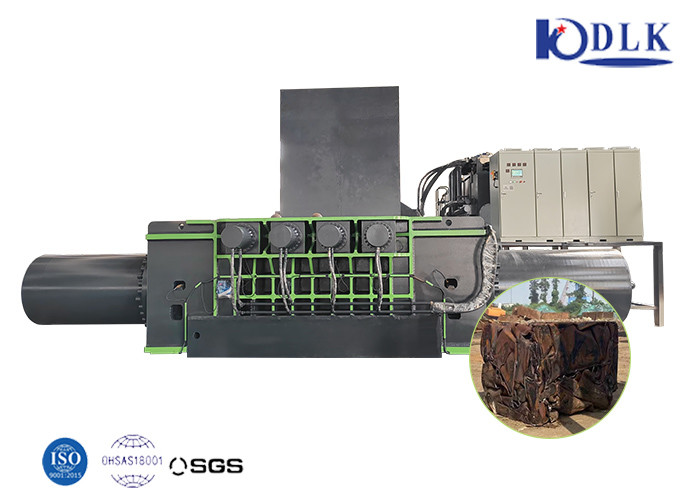

This is a large hydraulic metal baler. A metal baler is a scrap metal recycling machine that squeezes scrap metal into blocks by mechanical force. Scrap metal materials can be compressed into regular cuboids, cylinders or octagons, which not only reduces the storage space of scrap metal, but also facilitates transportation, and at the same time saves the operating costs of scrap metal recyclers. This metal baler is already one of the essential metal recycling equipment in the scrap metal recycling industry. The types of our metal balers are Y81 series, Y82 series, Y83 series and so on. This one is a 2,000-ton Y81 series large hydraulic metal baler. The size of the material box of this metal baler is 3500*3000*1500mm, and the cross-sectional size of the metal baler is 700*700mm. The size of the material box and the size of the bale can be customized and produced according to customer needs.
Technical Parameters
| NO. | Parameter Name And Content | |
| 1 | Machine name | Hydraulic metal baler |
| 2 | Master cylinder pressure | 20000kN |
| 3 | Material box specification | 3500x3000x1500mm |
| 4 | Bale section size * shortest length | (700x700)x600mm |
| 5 | Bale density | ≤2800/m³ |
| 6 | Single no-load cycle time | About 100 seconds |
| 7 | Operation method | Automatic, remote control operation |
| 8 | Productivity | About 7-15 bags/hour |
The above parameters are for reference only, the actual parameters shall prevail.
Features of the metal baler
1. All models use hydraulic drive, or manual or PLC control.
2. Bale-discharging: "turn-out" bale, and "push-out", "forward-out" discharging can be choosed.
3. variety of models to choose from: different pressures, material box size, mass, shapes and sizes.
4. where no power supply can be powered with diesel engine.
Company Profile
Jiangsu Dalongkai Technology Co., Ltd was established in 2003 and we researched and produced the first hydraulic machine exported from us based on customer’s need. This made us begin to sell our products world wide. In order to enlarge our overseas market and improve our products quality, we especially established our trade company ---Jiangsu Dalongkai Technology Co., Ltd. Our trade company not only promotes our machinery, we also export different kinds of products by our professional sales team.
FAQ
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 20 years, export proportion 50~60%.
Q4:How can I trust your company?
A: With 20-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment.
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
