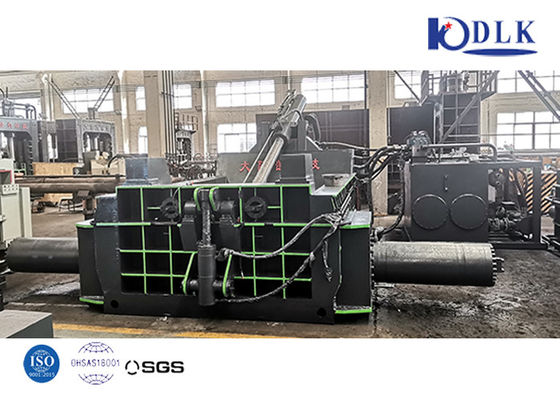

Metal Aluminum Scrap Baler Machine Automatic Recycling Baling Y81QF-250
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Scrap Baling Press | Bale Discharging Mode | Turning-out |
|---|---|---|---|
| Main Cyl.Force | 250 Ton | Voltage | 380V,50HZ,Customized |
| Power | 60kw | Color | Gray & Green (Customized) |
| Application | Recycling | Warranty | 12 Months |
| Automatic Grade | Automatic | Type | Metal Baler |
| High Light | Metal Aluminum Scrap Baler Machine,Automatic Recycling Scrap Baler Machine,60kw Scrap Baler Machine Customized |
||
Product Description
Product Description
The basic principle of Y81 series hydraulic metal baler is to use the property of metal material to produce plastic deformation under the action of external force, to give the metal material enough external force that can gather and produce permanent deformation, so as to form a tight package. Our hydraulic scrap metal balers are mainly used in scrap metal recycling yards, steel mills, scrap metal recycling and processing industries, etc.
Technical Parameters
| NO. | Parameter name and content | ||||
| 1 | Main oil cylinder | Model | YG340/220 | Qty. | 2pc |
| Normal force | 2500KN | Stroke | 730mm | ||
| 2 | Side pressure cylinder | Model | YG240/160 | Qty. | 2pc |
| Normal force | 1100kN*2 | Stroke | 2070mm | ||
| 3 | Turning bag cylinder | Model | YG140/75 | Qty. | 1pc |
| Normal force | 120kN | Stroke | 1900mm | ||
| 4 | Door cover cylinder | Model | YG240/160 | Qty. | 1pc |
| Normal force | 1100kN | Stroke | 320mm | ||
| 5 | Cooler | Model | GLC-12m² | Heat exchange area | 12㎡ |
| 6 | Cooling Tower | Model | LJR-20L | Power | 0.55kW |
| 7 | Water circulating pump | Model | ISG50-125A | Power | 1.5kW |
| Flow | 16.3m³/h | Qty. | 2900r/min | ||
| 8 | Hydraulic system working pressure | ≤26MPa | |||
| 9 | Specification of material box (compression chamber) | 2500x2000x1000mm | |||
The parameters in the above table are for reference only.
Features of the metal baler
1. Hydraulic drive, compact design, great sealing;
2. Customized press box size and bale size;
3. Bale discharging ways include turn-out, side-push out and forward-out;
4. Designed with quick unit that can improve work efficiency substantially;
5. Famous motor, hydraulic system, oil cylinder, piston pump, electrical components;
Application
The horizontal metal scraps baler is suitable for various large, medium and small factories, waste metal recycling processing industry and non-ferrous metal smelting industry.
The used metal baler machine can press various metal scraps, steel shavings, scrap steel, scrap aluminum, scrap copper, etc. into qualified shapes such as cubes, cylinders, octagons, etc. to reduce the transportation and smelting costs of metal scraps materials.
Company Profile
Dalongkai Technology Co., Ltd. is a manufacturer of metal recycling machinery, the main products include: metal balers, gantry shears, horizontal shears, crocodile shears, briquetting machines and scrap crushers. We can also provide rebar pelletizers, shear balers, container pushers, etc. With so many types of recycling machinery, there are many options for you. Our scrap metal recycling machines handle your metal scrap perfectly, increasing your profits and reducing your costs. According to customer needs, our machines can also be installed with a remote monitoring system, which can identify machine failure problems and assist customers in solving them.
Certifications
FAQ
Q1:Are you a manufacturer, trading company or a third party?
A:We are a professional manufacturer of large and medium-sized hydraulic machinery and equipment in China, and also one of the production bases of metal hydraulic baler and metal shearing machine.
Q2:What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog.
Q3: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q4:As the shipping period will take long time, how can you make sure the machine won’t be broken?
A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
Q5:How to Install ?
A:a.For vertical baler machines, no need to install. This kind of machine is exported by complete unit.
b.For horizontal machines, we can provide installation service. Installation and training are free, but our technician’s charges
of freight tickets, hotels and food etc are on your account.
