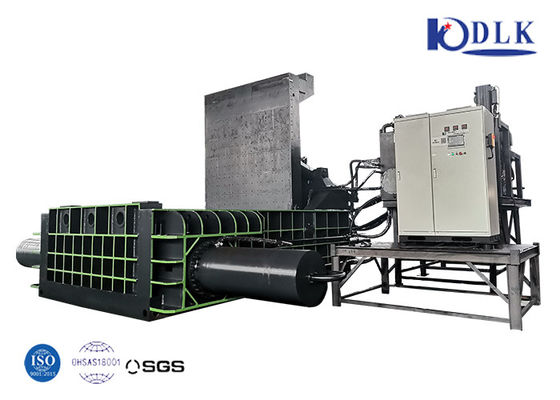

Hydraulic Scrap Copper Baler Heavy Waste Metal Press Machine

Place of Origin Made in China
Brand Name DLK
Certification ISO9001
Model Number Y81K-630
Minimum Order Quantity 1 set
Price Negotiation
Packaging Details Nude packing
Delivery Time 30-40 days
Payment Terms L/C, T/T, Western Union
Supply Ability 10 sets /month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Scrap Copper Baler Main Cyl.Force 630 Ton
Power 100.9kw Size Of Feed Box 3500*3000*1300 Mm
Bale Weight 1100-1700 Kg Bale Size 600*600 Mm
Color Gray & Green (Customized) Automatic Grade Semi-Automatic
Control System PLC Control System Warranty 12 Months
High Light

Semi Automatic Scrap Copper Baler

,

Hydraulic Scrap Copper Baler

,

Heavy Waste Metal Press Baler Machine

Leave a Message
Product Description

Introduction of the metal baler

    Y81 series scrap metal balers can be used to compress all kinds of scrap metal, including domestic scrap metal (aluminum beverage cans, washing machine shells, scrap car shells, etc.) and industrial scrap metal (aluminum chips, shavings, scrap copper, scrap steel bars, scrap stainless steel profiles) and many more. This Y81-630 baler adopts PLC automatic control system, which has small maintenance workload, convenient later maintenance, and simple operation, which can be controlled by one person. The scrap metal baler is also divided into a single master cylinder baler and a double master cylinder baler. This scrap metal baler adopts a double master cylinder design, which makes the packing pressure more stable and the packing block tighter. The size of the material box of the machine and the size of the packaging block of the whole machine can be designed and manufactured according to customer needs.


Features of the baler

1. All models are hydraulically driven and can be manually operated or PLC controlled automatically.
2. The package delivery methods include turning package, side pushing package, forward pushing package, manual picking, etc.
3. Where there is no power supply, diesel engine can be used as power.
4. The size of the feeding box and the shape and size of the bale can be designed and customized according to the user's raw material specifications.


Specification of the baling machine

Main technical parameters
No. Item Unit Parameters
Y81-630
1 Nominal pressure Main cylinder KN 6300
Auxiliary cylinder KN 3150*2
2 Maximum working pressure Mpa 25
3 Processing box size Length mm 3500
Width mm 3000
Height mm 1300
4 Bale size Length mm 600~1500
Width mm 600
Height mm 600
5 Bale density kg/m3 Steel≥2350
6 Single-cycle time S ≈105
7 Oil pump - A4V250*2
8 Total weight T ≈90

Notice:
1. The above technical parameters are for reference only, we reserve the right to adjust according to actual needs.
2. Non-standard models of press box size and bundle size can be customized according to customer needs.

Applications of the baler
    Y81 series hydraulic metal scrap balers is applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon).

Hydraulic Scrap Copper Baler Heavy Waste Metal Press Machine 0

Hydraulic Scrap Copper Baler Heavy Waste Metal Press Machine 1
Hydraulic Scrap Copper Baler Heavy Waste Metal Press Machine 2
Company Profile

    Dalongkai Technology Co., Ltd. is a manufacturer of metal recycling machinery, the main products include: metal balers, gantry shears, horizontal shears, crocodile shears, briquetting machines and scrap crushers. We can also provide rebar pelletizers, shear balers, container pushers, etc. With so many types of recycling machinery, there are many options for you. Our scrap metal recycling machines handle your metal scrap perfectly, increasing your profits and reducing your costs. According to customer needs, our machines can also be installed with a remote monitoring system, which can identify machine failure problems and assist customers in solving them.
Hydraulic Scrap Copper Baler Heavy Waste Metal Press Machine 3
Hydraulic Scrap Copper Baler Heavy Waste Metal Press Machine 4

Exhibition

    Our company often participates in international metal recycling industry equipment exhibitions.

Hydraulic Scrap Copper Baler Heavy Waste Metal Press Machine 5

Certifications
Hydraulic Scrap Copper Baler Heavy Waste Metal Press Machine 6
FAQ
Q1:Are you a manufacturer, trading company or a third party?
A:We are a professional manufacturer of large and medium-sized hydraulic machinery and equipment in China, and also one of the production bases of metal hydraulic baler and metal shearing machine.


Q2:What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog.


Q3: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .


Q4:As the shipping period will take long time, how can you make sure the machine won’t be broken?
A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.


Q5:How to Install ?
A:a.For vertical baler machines, no need to install. This kind of machine is exported by complete unit.
b.For horizontal machines, we can provide installation service. Installation and training are free, but our technician’s charges
of freight tickets, hotels and food etc are on your account.
