630 Ton Scrap Aluminum Iron Copper Baling Machine Press Recycling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Metal Baling Machine | Main Cyl.Force | 630 Ton |
|---|---|---|---|
| Power | 100.9kw | Size Of Feed Box | 3500*3000*1300 Mm |
| Bale Weight | 1100-1700 Kg | Bale Size | 600*600 Mm |
| Color | Gray & Green (Customized) | Automatic Grade | Semi-Automatic |
| Control System | PLC Control | Warranty | 1 Year |
| Highlight | Scrap Aluminum Iron Baling Machine,630 Ton Scrap Baling Machine,Press Recycling Scrap Baling Machine |
||
Product Description

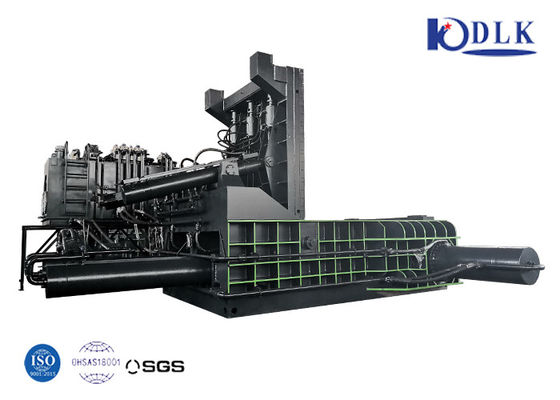

Introduction of the metal baler
This 630-ton scrap metal baler is a scrap metal recycling equipment specially used for scrap metal packing and compression. The baler adopts PLC automatic control system, the maintenance workload is small, the later maintenance is also convenient, the operation is simple, and one person can control it. The baler is also divided into a single master cylinder baler and a double master cylinder baler, and this Y81-630 baler is designed with a double master cylinder, the baling pressure is more stable, and the baling block is tighter. The size of the material box and the size of the package block of the machine can be designed and manufactured according to customer needs.
Specification of the baling machine
| Main technical parameters | ||||
| No. | Item | Unit | Parameters | |
| Y81-630 | ||||
| 1 | Nominal pressure | Main cylinder | KN | 6300 |
| Auxiliary cylinder | KN | 3150*2 | ||
| 2 | Maximum working pressure | Mpa | 25 | |
| 3 | Processing box size | Length | mm | 3500 |
| Width | mm | 3000 | ||
| Height | mm | 1300 | ||
| 4 | Bale size | Length | mm | 600~1500 |
| Width | mm | 600 | ||
| Height | mm | 600 | ||
| 5 | Bale density | kg/m3 | Steel≥2350 | |
| 6 | Single-cycle time | S | ≈105 | |
| 7 | Oil pump | - | A4V250*2 | |
| 8 | Total weight | T | ≈90 | |
Notice:
1. The above technical parameters are for reference only, we reserve the right to adjust according to actual needs.
2. Non-standard models of press box size and bundle size can be customized according to customer needs.
Applications of the baler
Y81 series hydraulic metal scrap balers is applicable in steel plants, recycling companies, ferrous &non-ferrous smelting industry to press metal scraps (steel, copper, aluminum, stainless steel, discarded automobiles) into acceptable furnace charges (shapes: cuboid, cylinder or octagon).
Features of the baler
1. All models are hydraulically driven and can be manually operated or PLC controlled automatically.
2. The package delivery methods include turning package, side pushing package, forward pushing package, manual picking, etc.
3. Where there is no power supply, diesel engine can be used as power.
4. The size of the feeding box and the shape and size of the bale can be designed and customized according to the user's raw material specifications.
METAL BALES AFTER COMPRESSING
After compressing, the metal bale is easy to transport and store, so it can save transporation cost, reduce storage area and reduce the loss when smelting. Easy operation, durable and long service life, high efficiency, etc.
Company Profile
Jiangsu Dalongkai Technology Co., Ltd. has been a trusted name in the waste recycling equipment industry for over a decade as a dedicated Chinese manufacturer of scrap metal recycling equipment, our flagship products includethe shear baler, scrap baler, scrap shear, and recycling crane.
In addition to scrap metal processing equipment, we also supply horizontal baler and vertical baler for compacting plastic, paper, cardboard, straw, textile and more types of wastes.
Our Dalongkai brand has received critical acclaim both domestically and overseas. As a trusted waste recycling equipment manufacturer, we have successfully passed the certification of both the TUV and the ISO9001 Quality Management System. We are currently in the process of obtaining the approval of European standards such as CE and UL.
Exhibition
Our company often participates in international metal recycling industry equipment exhibitions.
Certifications
FAQ
Q1:Are you a manufacturer, trading company or a third party?
A:We are a professional manufacturer of large and medium-sized hydraulic machinery and equipment in China, and also one of the production bases of metal hydraulic baler and metal shearing machine.
Q2:What is your minimum order quantity, can you send me samples?
A:Our minimum quantity is 1 set, as our product is machinery equipment, it’s difficult to send you samples, however,we can send you catalog.
Q3: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q4:As the shipping period will take long time, how can you make sure the machine won’t be broken?
A:Our machine is film wrapped, to make sure the machine can be delivered to our customer smoothly, we will use the steel wire to fix the machine with the container.
Q5:How to Install ?
A:a.For vertical baler machines, no need to install. This kind of machine is exported by complete unit.
b.For horizontal machines, we can provide installation service. Installation and training are free, but our technician’s charges
of freight tickets, hotels and food etc are on your account.
