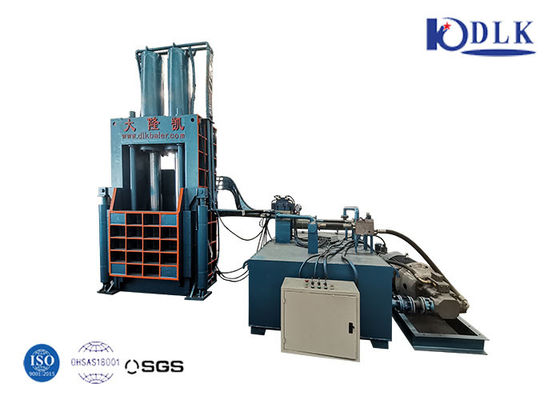

Hydraulic 315 T Vertical Baler Machine Waste Metal / Paper / Cloth Press Recycling
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Vertical Scrap Metal Baler | Automatic Grade | Semi-Automatic |
|---|---|---|---|
| Main Cyl.Force | 315 Ton | Press Box Size | 2200*1100*2000 Mm |
| Power | 60 KW | Driven Type | Hydraulic |
| Application | Waste Paper Baling | Warranty | 12 Months |
| Color | Blue（customized） | OEM | YES |
| Highlight | vertical baler machine 315 t,anti rebound barb vertical baler machine,anti rebound barb paper baler machine |
||
Product Description
Product Description:
Vertical hydraulic baler is mainly used to recycle baling materials and waste products such as compressed cardboard, waste film, waste paper, foam plastic, beverage cans and industrial scraps. This vertical baler reduces waste storage space, saves up to 80% of stacking space, reduces transportation costs, and is conducive to environmental protection and waste recycling.
Main features of vertical hydraulic baler:
1. Hydraulic compaction, manual loading, manual button operation;
2. Completely maintain the physical properties of the material;
3. The waste compaction ratio can reach 5:1;
4. Two tie lanes for easy operation;
5. Anti-rebound barb to maintain the compression effect;
6. The pressure plate returns automatically.
Basic structure of vertical hydraulic baler:
Vertical hydraulic baler is mainly composed of hydraulic cylinder, motor and fuel tank, pressure plate, box body and base, upper door, lower door, latch, strap bracket, iron support, etc.
Technical parameters:
| Model | Main Cyl.Force(ton) | Press Box Size(mm) | Bale Section(mm) | Power(kw) | Bale discharging method |
| Y82-25F | 25 | 1000*500*1500 | 1000*700 | 11 | Push out |
| Y82-63 | 63 | 1100*700*1500 | 1100*700 | 15 | Push out |
| Y82-100 | 100 | 1200*750*1600 | 1200*750 | 18.5 | Push out |
| Y82-160 | 160 | 1300*800*1700 | 1300*800 | 22 | Push out |
| Y82-200 | 200 | 1500*800*1900 | 1500*800 | 37 | Push out |
| Y82-250 | 250 | 1500*900*1900 | 1500*900 | 44 | Push out or PLC control |
| Y82-315 | 315 | 2200*1100*2000 | 2200*1100 | 60 | Push out or PLC control |
Application:
Y82 vertical baler is mainly used to compress materials such as woven bags/cloths, waste stainless steel, waste aluminum, and waste non-ferrous metals.
Factory & Certification:
FAQ:
Q1: How can i get the after-service?
A: We provide one year guarantee and lifelong maintenance.
We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,however it is charged.
Any problem, you can call us directly.
Q2: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
Our factory address: 29# Panlongshan Road,Jiangyin city,Jiangsu province,214429, P.R China
Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.
Hotel booking service is available .
Q3:Are you a factory or trade company?
A: We are manufacturer with own factory for 20 years, export proportion 50~60%.
Q4:How can I trust your company?
A: With 20-years-professional design, we can provide you suitable suggestion and lowest price
1. Assessed by third party, national patents and CE, ISO for all equipment.
2. Welcome to inspect anytime. We are near to Shanghai Pudong airport.
3. For our machine, we do very well on hydraulic balers,hydraulic shears.
Q5 :Is your price competitive?
A: Only good quality machine we supply. Surely we will give you best factory price based on superior product and service.
