Manual Control Alligator Metal Shear Hydraulic Drive High Safety 30 kW Power
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Rated Power | 30 KW | Main Machine Size | 3800*1400*2100 |
|---|---|---|---|
| Cutting Speed | 4 - 8 Times / Min | Color | Customized |
| Application | Scrap Metal | Voltage | 25 MPa |
| Blade Length | 1600 Mm | Shipping Weight | Approx. 15.5 Ton |
| Quality | Grade A | ||
| Highlight | alligator shearing machine,hydraulic alligator shear |
||
Product Description

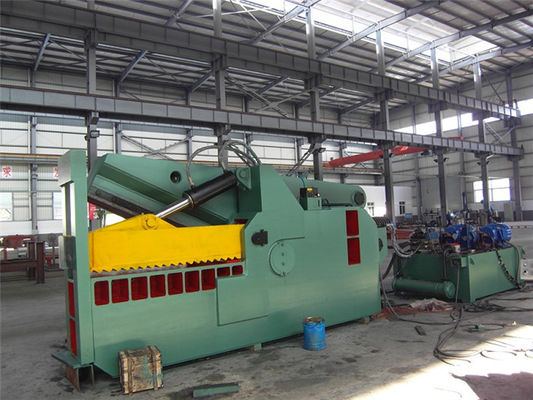

Manual Control Alligator Metal Shear Hydraulic Drive High Safety
Applications:
Such machinery is applicable to metal reclamation plants, scraped car dismantle sites , refining &casting industry, and it conducts cold-state shear for various structural steel and metal framework to produce qualified charging.
Features:
1. Such series employ hydraulic drive ,featuring reliable safety performance and convenient operation.
2. Length of working edge: 400mm,600mm,700mm,800mm,1000mm,1200mm,1600mm,1800mm, and the shearing force covers11 grades from 63t to 600t, which can meet different requirements of users.
3. Foot screws may not be used for installation and a diesel engine can be adopte in case of unavailability of power supply.
4. Hydraulic drive, simple operation & easy maintenance.
5. Options for different force & blade length.
6. No footing bolts needed, diesel engine optional for power.
Technical parameters:
|
No. |
Model |
Shearing force |
Max.opening |
Blade Length |
Max.cutting material |
Power |
|
1 |
Q43-630 |
63t |
240mm |
600mm |
30*30mm ¢35 |
7.5KW |
|
2 |
Q43-800 |
80t |
280mm |
800mm |
35*35mm ¢40 |
7.5KW |
|
3 |
Q43-1000 |
100t |
320mm |
800mm |
40*40mm ¢45 |
11 KW |
|
4 |
Q43-1200 |
120t |
270mm |
600mm |
45*45mm ¢50 |
15 KW |
|
5 |
Q43-1600 |
160t |
320mm |
800mm |
55*55mm ¢63 |
18.5 KW |
|
6 |
Q43-2000 |
200t |
380mm |
1000mm |
65*65mm ¢75 |
22 KW |
|
7 |
Q43-2500 |
250t |
450mm |
1000mm |
70*70mm ¢80 |
2*15 KW |
|
8 |
Q43-3150 |
315t |
450mm/520mm |
1000mm/1200mm |
80*80mm ¢90 |
2*22 KW |
|
9 |
Q43-4000 |
400t |
660mm |
1200mm |
90*90mm ¢100 |
2*30 KW |
|
10 |
Q43-5000 |
500t |
690mm |
1500mm |
90*90mm ¢100 |
2*37 KW |
|
11 |
Q43-6000 |
600t |
860mm |
1600mm |
105*105mm ¢120 |
2*45 KW |
