High Efficiency Horizontal Baling Machine Full Automatic Strapping Custom
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Condition | New | Motor | 74+7.5 KW |
|---|---|---|---|
| Nominal Force | 50Tons ~125Tons | Driven Type | Hydraulic |
| Voltage | 21.5Mpa, Customized | Color | Customized |
| Quality | Grade A | ||
| High Light | plastic baling press,plastic baler machine |
||
Product Description

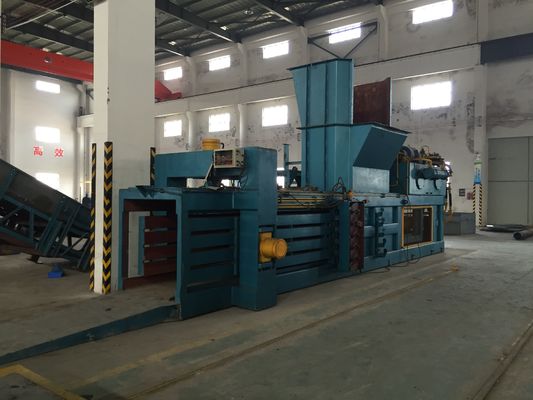

Automatic Melting , HPA125 Series Horizontal Plastic Baling Machine
Specifications
1. Packaging material : scrap paper & plastic scraps & straw
2. PLC control
3. Horizontal structure
4. Push-button operation
Feature
1. PLC control combined with window monitoring of the human computer interface(touch screen),
synchronous action instruction chart combined with the error warning, the bale length available for adjustments.
2. Floating convergent mouth design in three directions(left, right and upward),beneficial to automatic pressure distribution in four sides, widely used for baling different materials
3. Automatic belting, speeding up baling.
4. Push cylinder and head connected by the sphere structure with good reliability and long working life of oil seal.
5. Low-noise hydraulic circuit design with high efficiency and low trouble frequency.
6. Decentralized shears equipment at the feeding inlet with high shearing efficiency.
7. Simple installation without base.
|
Model |
Main Cyl, Force(mm) |
Hopper Size(L*W)(mm) |
Bale Size(W*H)(mm) |
Bale Weight(kg) |
Motor(KW) |
|
HPA50 |
50 |
900*700 |
700*700 |
200-280 |
22+5.5 |
|
HPA63 |
63 |
1600*700 |
700*700 |
230-310 |
37+5.5 |
|
HPA80A |
80 |
1600*720 |
720*1100 |
400-530 |
45+7.5 |
|
HPA80B |
80 |
1600*800 |
800*1100 |
430-580 |
45+7.5 |
|
HPA80C |
80 |
1450*1100 |
1100*720 |
400-530 |
45+7.5 |
|
HPA100A |
100 |
1600*1000 |
1000*1100 |
670-1050 |
55+15 |
|
HPA100B |
100 |
2200*1100 |
1100*1100 |
720-1150 |
55+15 |
|
HPA125A |
125 |
2200*1100 |
1100*1100 |
720-1150 |
74+7.5 |
|
HPA125B |
125 |
2200*1100 |
1100*1250 |
790-1250 |
74+7.5 |
|
HPA150A |
150 |
2200*1100 |
1100*1100 |
760-1280 |
90+7.5 |
|
HPA150B |
150 |
2200*1100 |
1100*1250 |
830-1400 |
90+7.5 |
|
HPA180 |
180 |
2200*1100 |
1100*1100 |
810-1350 |
180+7.5 |
